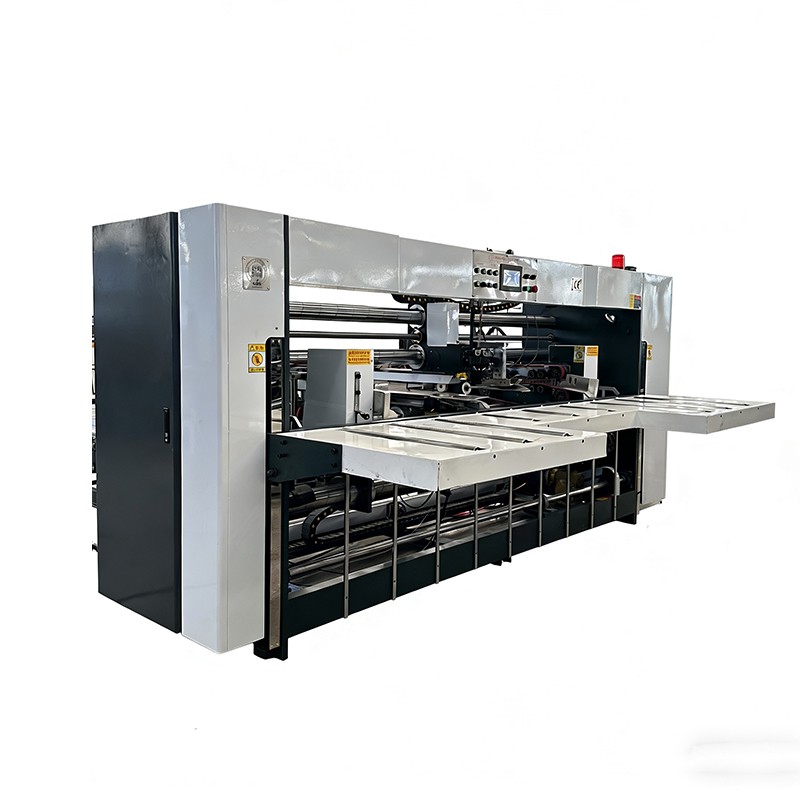

Semi Automatic Double Pieces Carton Box Stitcher Machine
- Product Item : 16
- Category： Carton gluing and stitching machine
- Double-Piece Box Stapler
- Carton Box Packing Machine
- Carton Machine
- Carton Making Machine
Semi Automatic Double Pieces Carton Box Stitcher Machine
It is suitable for small and medium-sized cartons with three or five layers, and can be nailed to cartons with bottom and no cover. Seven layers need to be customized (it needs to be explained when the seven layers of cartons and cartons with bottom and no cover are customized).
Product Feature：
1.Imported four servo control system.
2.A dual purpose, can nail single, double, irregular carton.
3.The dimensions are all electrically controlled.
4.Can nail: single nail, double nail, reinforcing nail a complete.
5.The paper feeding section counts automatically, and the finished products are sent out for binding.
6.Suitable for small and medium-sized cartons, binding fast and labor saving.
7.Adjust stitching distance, use computer to set automatic stitching distance.
8.It is suitable for small and medium-sized cartons with three or five layers, and can be nailed to cartons with bottom and no cover. Seven layers need to be customized (it needs to be explained when the seven layers of cartons and cartons with bottom and no cover are customized).
9.Nail distance (small - large) 30mm-120mm can be adjusted arbitrarily.
10.Mechanical speed: 500 nails/min.
Product Parameter：
Models and parameters
SDJ-2500
SDJ-3000
SDJ-3500

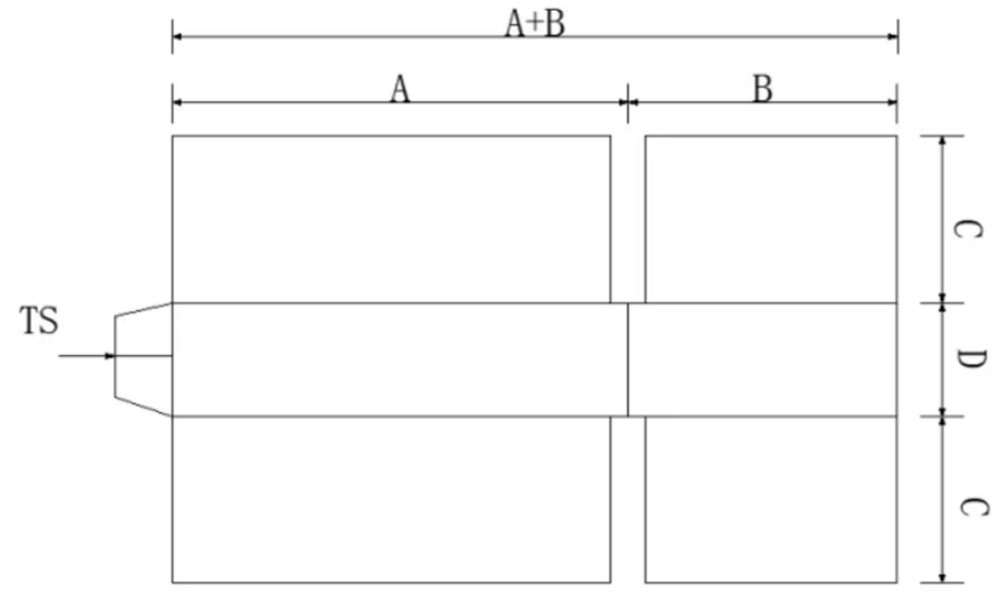

Maximum paperboard size (A+B)*2(mm)
4000
4800
6000
Minimum paperboard size (A+B)*2(mm)
1060
1060
1060
Maximum carton length A (mm)
1850
2350
2850
Minimum carton length A(mm)
350
350
350
Maximum carton width B (mm)
1000
1200
1500
Minimum carton width B (mm)
180
180
180
Maximum paperboard hight (C+D+C) (mm)
2500
2500
2500
Minimumpaperboard hight (C+D+C) (mm)
400
400
400
Maximum shake cover size C(mm)
560
560
560
Minimum rock cover size C(mm)
50
50
50
Maximum height D(mm)
2000
2000
2000
The minimum height D(mm)
150
150
150
Maximum width of the tongue (mm) TS
45
45
45
Nail distance (mm)
30-120
30-120
30-120
Nails NO.
1-99
1-99
1-99
Nailing speed nail/min
500
500
500
Nail wire type
17-18
17-18
17-18
Machine weight T
2.5
3
3.5
