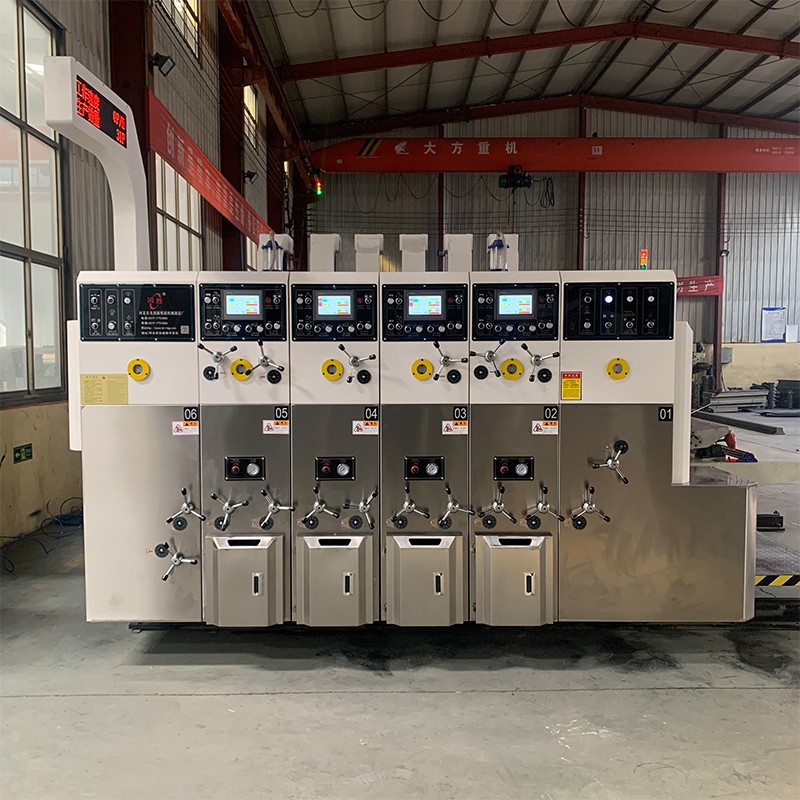

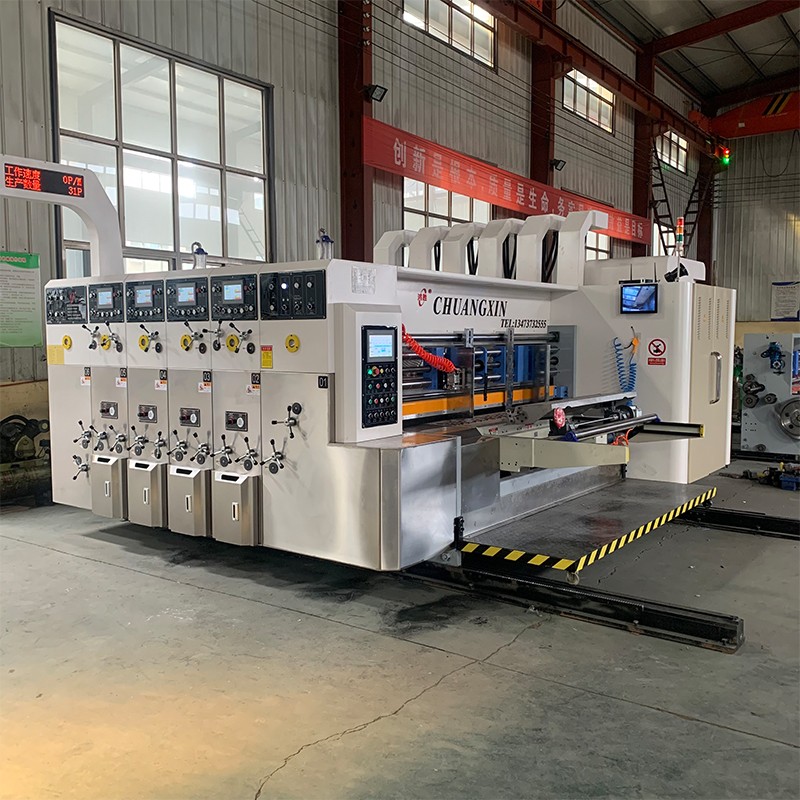

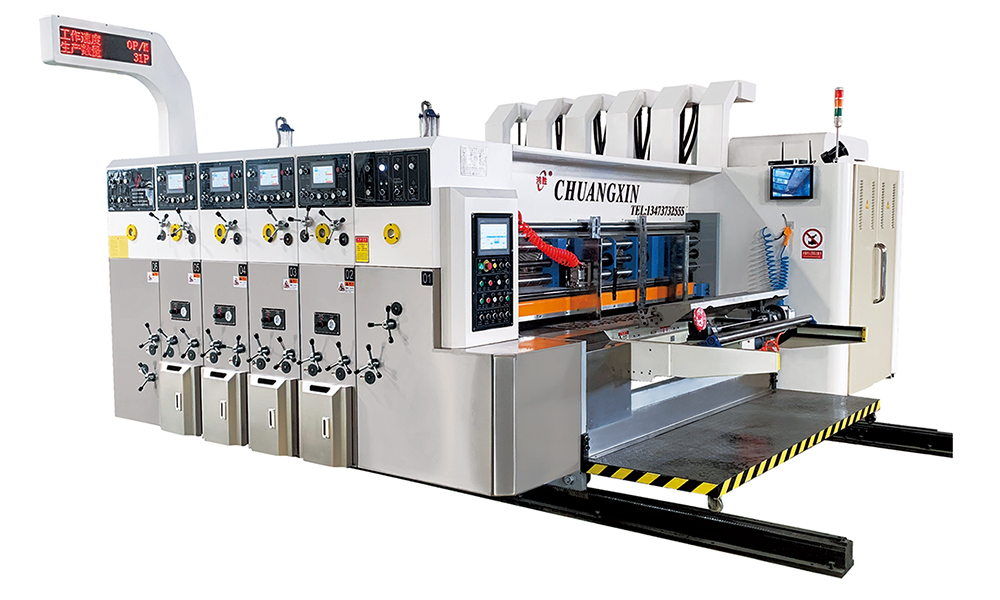

Printing Slotting Die Cutting Carton Machine Automatic High Speed for Packaging Factory Corrugated Cardboard Box Production

Printing Slotting Die Cutting Carton Machine Automatic High Speed for Packaging Factory Corrugated Cardboard Box Production

Functions and features：

1、The whole machine is designed and manufactured in accordance with high speed, high precision, high efficiency, reliable stability and safety.

2、 Transmission system: the transmission gear is made of 20CrMnTi steel, fine grinding, national standard 5 precision, using keyless connection ring and cross slider structure, to achieve no side gap gear transmission, can achieve long-term printing registration.

3、The whole machine is divided into one key, automatic split and automatic combination, automatic locking.

4、 Printing department computer control, automatic plate, try to print a cardboard can print out the finished product.

5、Grooving tool adjustment while the leading edge of the left and right baffle synchronous adjustment in place, greatly reduce the order change time.

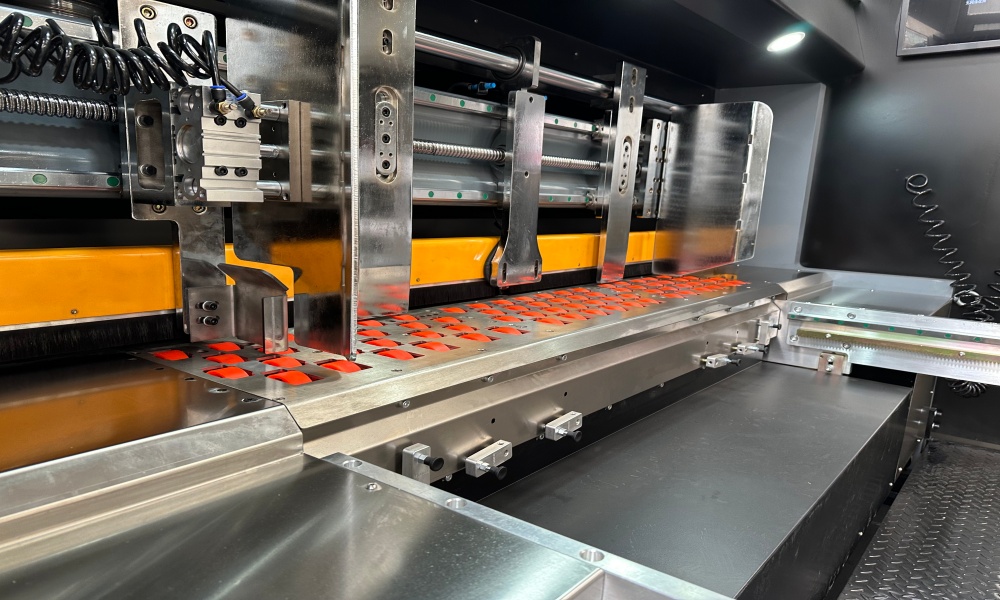

Feeding Unit ：

1、Servo pressure free type: servo pressure free leading edge roller feed system, supporting four servo motors, intelligent control, accurate, no gear wear caused by the paper feed precision reduction.

2、zero pressure does not damage the cardboard, and effectively overcome the cardboard warping, improve the accuracy of the paper feed, make the high and low speed paper feed more accurate.

3、The electric control machine is clutch, and the continuous ringing prompts between marching to ensure the safety of operators. The drive shaft is attached with friction clutch to avoid damage to the machine due to misoperation.

1、The use of international brand electrical appliances, the whole machine runs stable, the adjustment value is accurate.

Printing Unit：

1、The printing phase adopts full computer digital 360 degree adjustment (operation, shutdown can be), phase modulation accuracy up to 0.1mm.

2、Printing phase using PLC control digital display computer screen electric digital 360 degree adjustment (operation, shutdown can be adjusted accuracy up to 0.1mm.

3、The machine in the process of work, if you need to open the machine for erasing the version afte.

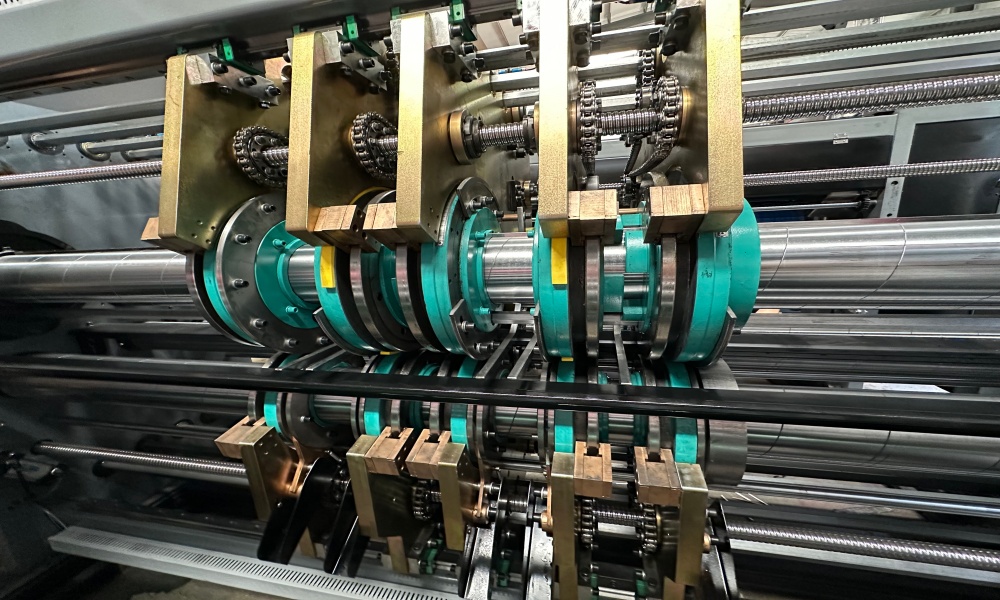

Slotter Unit:(Optional)

1、The slotting unit comes with double scoring rollers. The paperboard that has been scored in advance is hard to damage.

2、Slotting phase adjustment and carton height adjustment can be done by PLC, with color screen display. It is double frequency adjustment.

3、The phase adjustment device is made of planetary gear, thus ensuring long life span.

4、The slotting head, with width of 7mm, is made from alloy materials by thermal treatment and comes with sharpness and high precision.

5、The clearance of slotting and scoring is controlled by high precision ball screw, PLC and touch screen.

6、The slotter boasts auto zero set function.

7、User-friendly operation interface with color touch screen ensures easy operation.

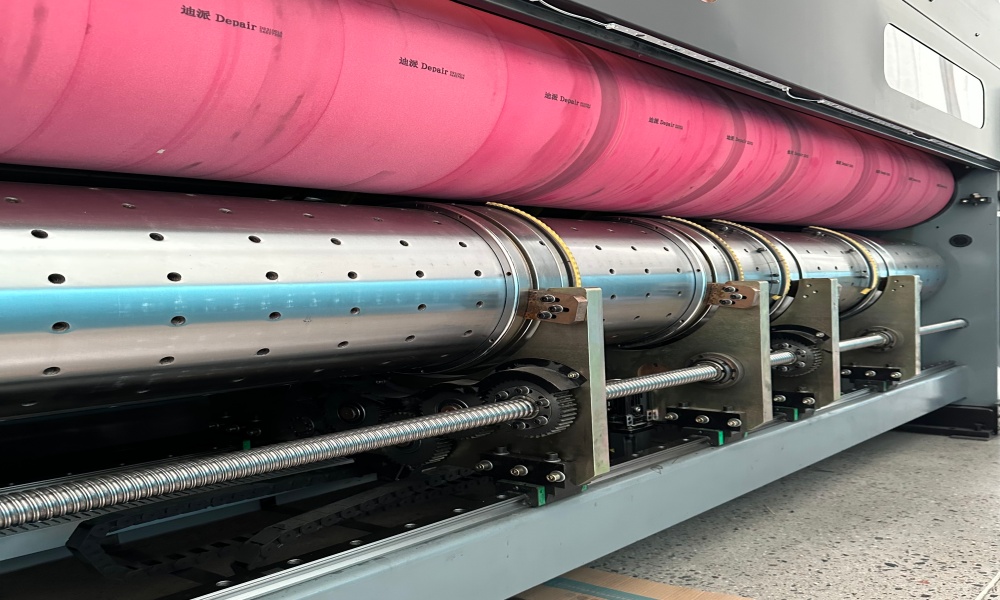

Circular die-cutting：

1、The folding carton die cutter comes with steel die cut roller with hard chrome plating treatment and grinding process on surface.

2、The die cut roller features balance correcting function, hence ensuring stable running.

3、The cushion roller is designed with an automatic moving device on axial direction, allowing it to move about 40mm.

4、An automatic compensation device can prolong the service life of cushion roller.

5、The die cutting phase adjustment is controlled by PLC and color touch screen.

6、Planetary gear structure of phase adjustment device shows long service life.

7、Axial position adjustment is controlled by computer with digital display.

Multifunctional die-cutting unit：

1、in addition to the standard configuration of the main function of die cutting, in addition to the configuration of four sets of steel die, do ordinary industrial box slotting, cutting Angle, side use, servo motor four knife synchronous adjustment, electric transverse movement. One click change order, can store 999 orders, convenient and fast.

2、using 8 sets of servo motor tool adjustment, high precision, fast tool adjustment speed.

3、adjust the box type there are 4 order modes: continuous box, single box (double molding), heaven and earth cover box, template shaped box.

4、tool adjustment at the same time, the leading edge left and right gear electric control synchronous adjustment.
