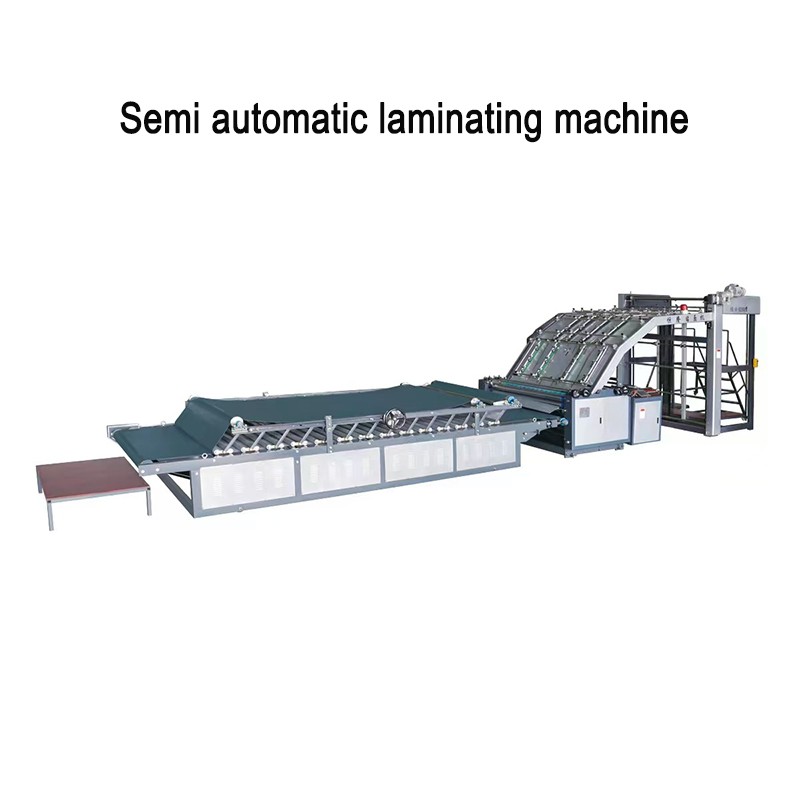

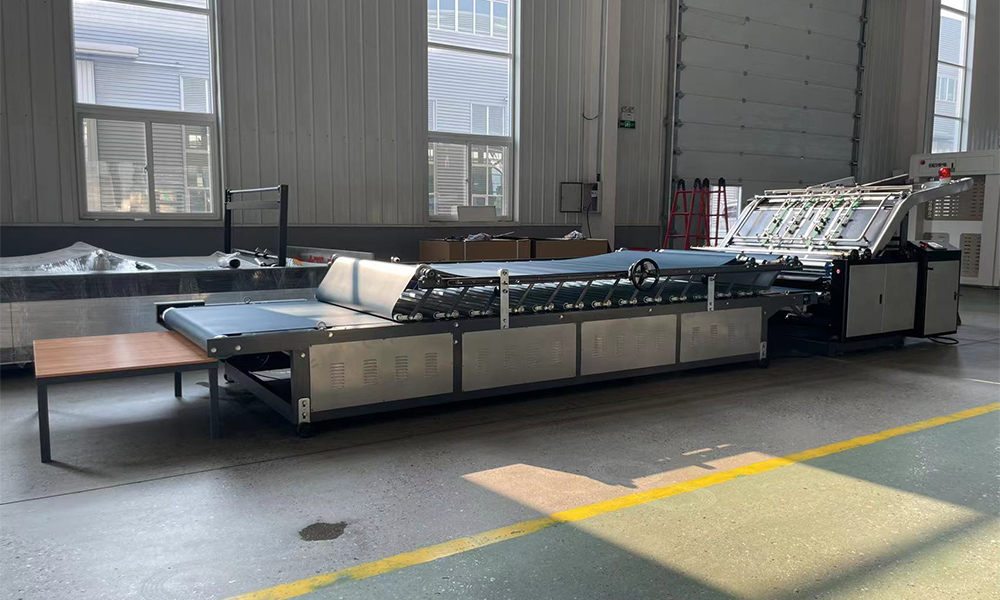

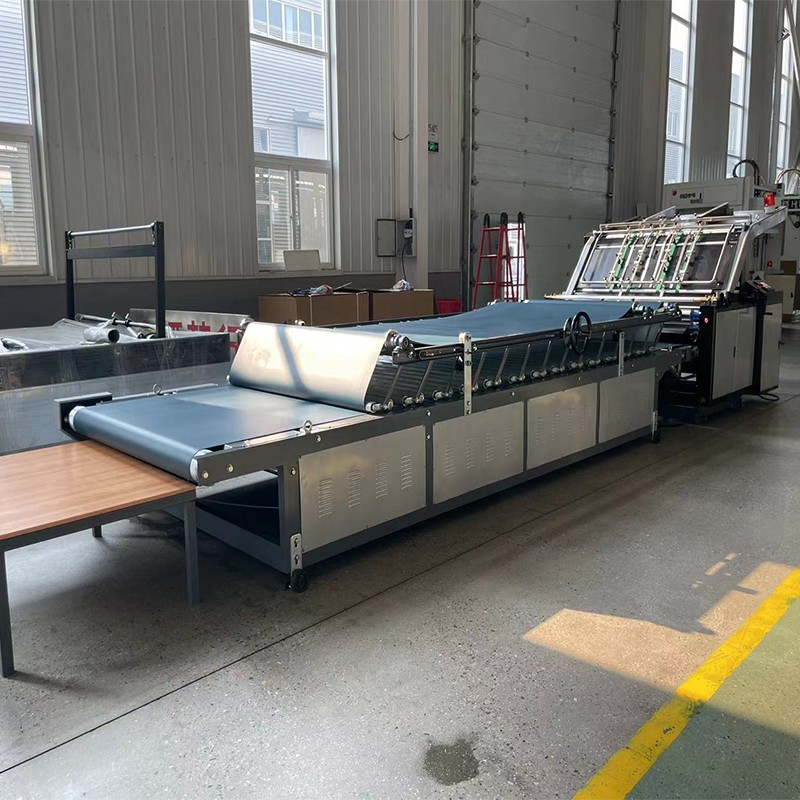

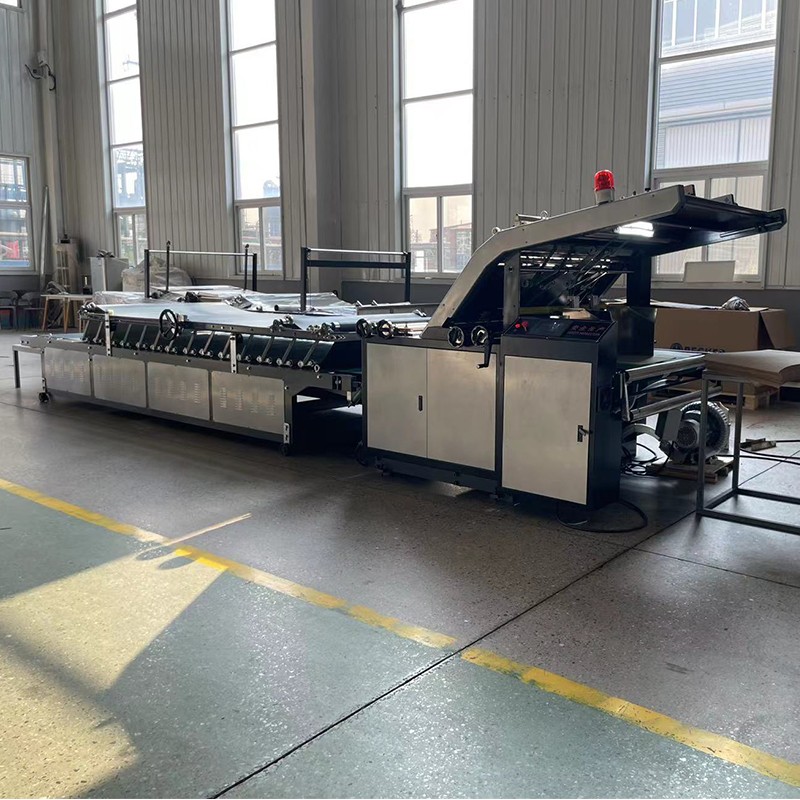

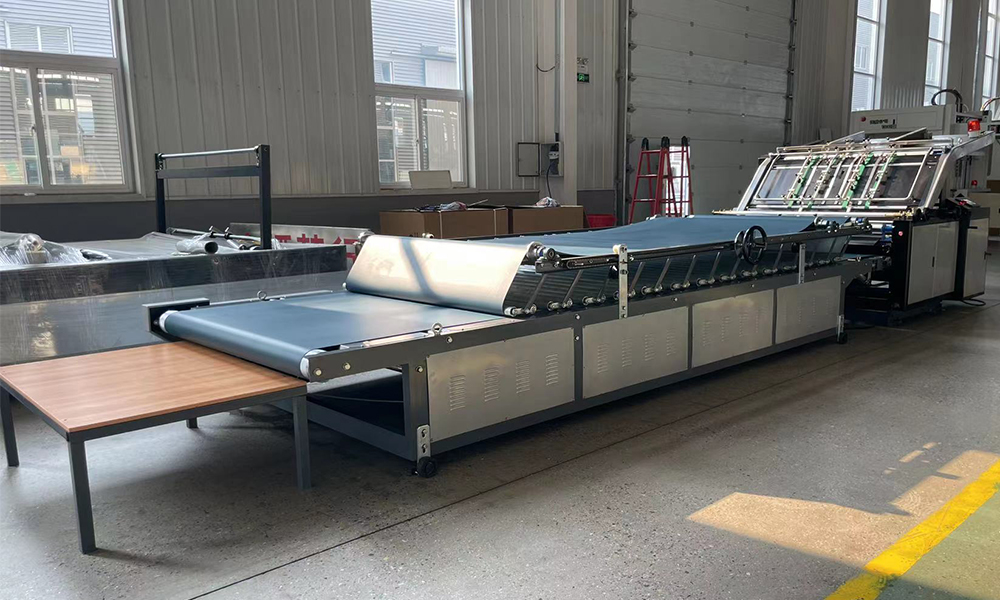

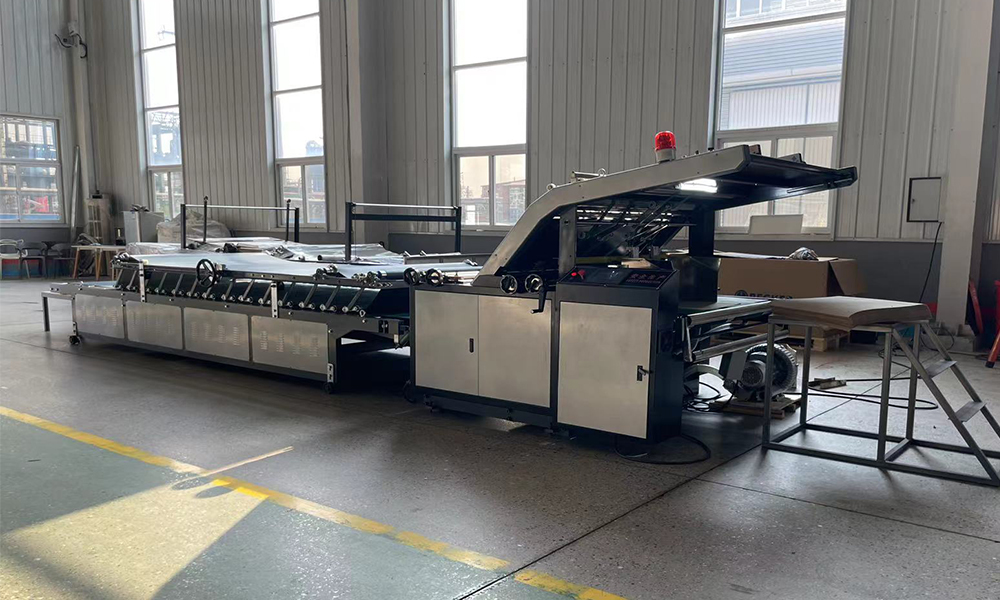

Semi automatic laminating machine

The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.

Product Feature
1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.
2. Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.

5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.

6. Roller design scientifically, avoid glue fly out when the speed is high.
7. Pressure rollers adopt one side adjustment, convenient and fast.
8. Rocker controls wash roller's fluctuation, easy cleaning.
9. Counter designs scientifically, easy recording the amount you have been worked.

Product Parameter

Model	cx-1300A	cx-1450A	cx-1550A	cx-1650A
Max size of laminating（mm）	1300×1250	1400×1250	1500×1250	1600×1250
Min size of laminating（mm）	360×360	360×360	360×360	360×360
Flute type	A C B E F
Economic speed（piece/min）	0-100	0-100	0-100	0-100
Laminating precision（mm）	±1	±1	±1	±1
Power（KW）	6	6.5	6.5	6.5
Size（m）	8.8×1.95×1.7	8.8×2.05×1.7	8.8×2.15×1.7	8.8×2.25×1.7
Weight（T）	About 3	About 3.5	About 3.5	About 3.5
