Manual Stitching Machine

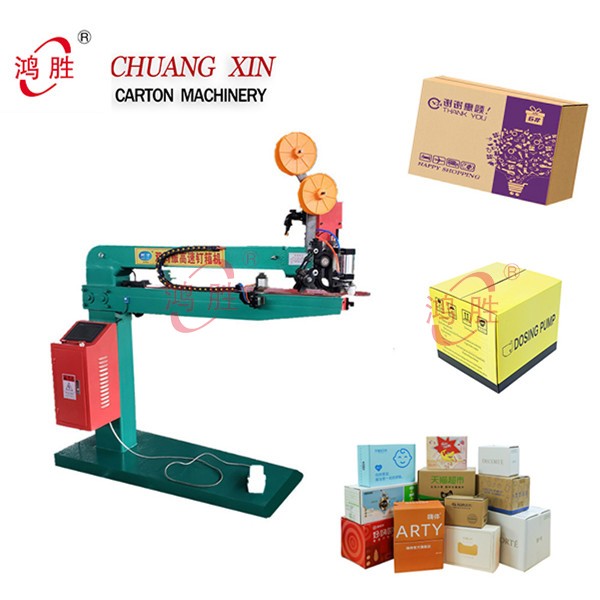

Semi Automatic Manual Box Stapler Corrugated Carton Stitching Machine

Place of Origin: Hebei, China
Brand: chuangxin
Model: Payment and Shipping Terms:
MOQ: One set
Packaging Details: Tray
Delivery time: 50-60 days
Payment Terms: Wire Transfer Premium
  • Product Detail

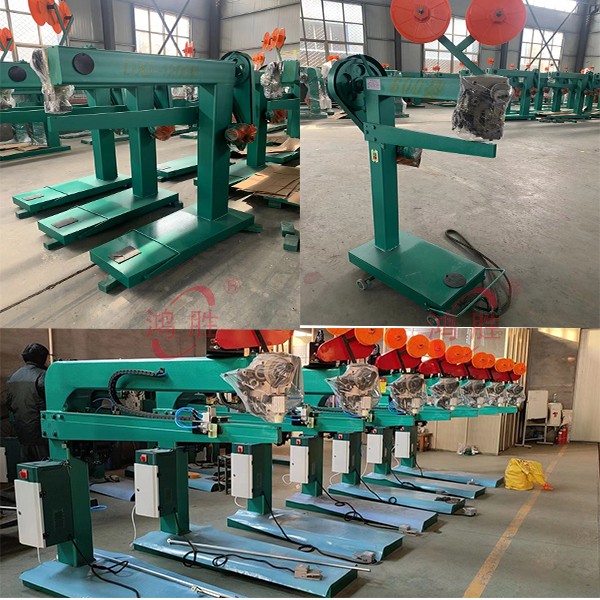

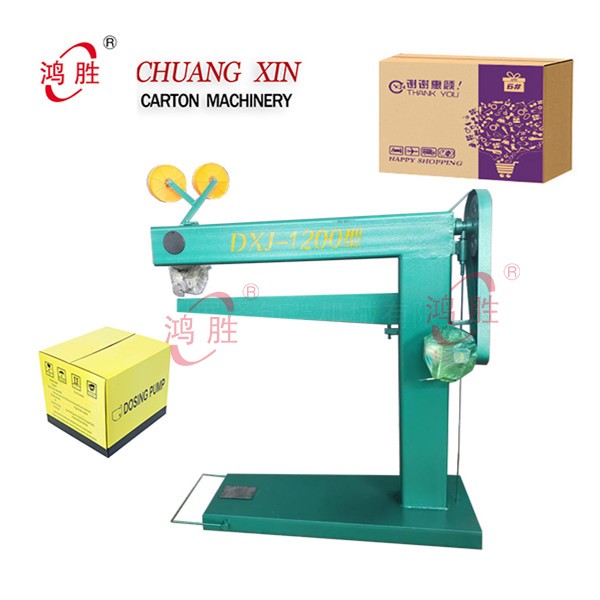

Semi Automatic Manual Box Stapler Corrugated Carton Stitching Machine


Essential details

Warranty:1.5 years

Type:Other, Other

Applicable Industries:Food & Beverage Factory, Printing Shops, Energy & Mining


Application:Commodity, Machinery & Hardware

Packaging Type:Film, Other

Packaging Material:Plastic, Wood

Automatic Grade:Semi-automatic

Driven Type:Electric



Place of Origin:China




Key Selling Points:Easy to Operate

After-sales Service Provided:Engineers available to service machinery overseas

Certification:CE certificates

machine name:semi automatic stitch machine


speed:450 staples

electric:Schneider,Simens and etc

number of stitching:1-99 stitches

paperboard type:3/5/7 ply paperboard

application:stitch carton box



corrugated carton box stitching machine auto flat wire stapling machinery

Machine Feature:

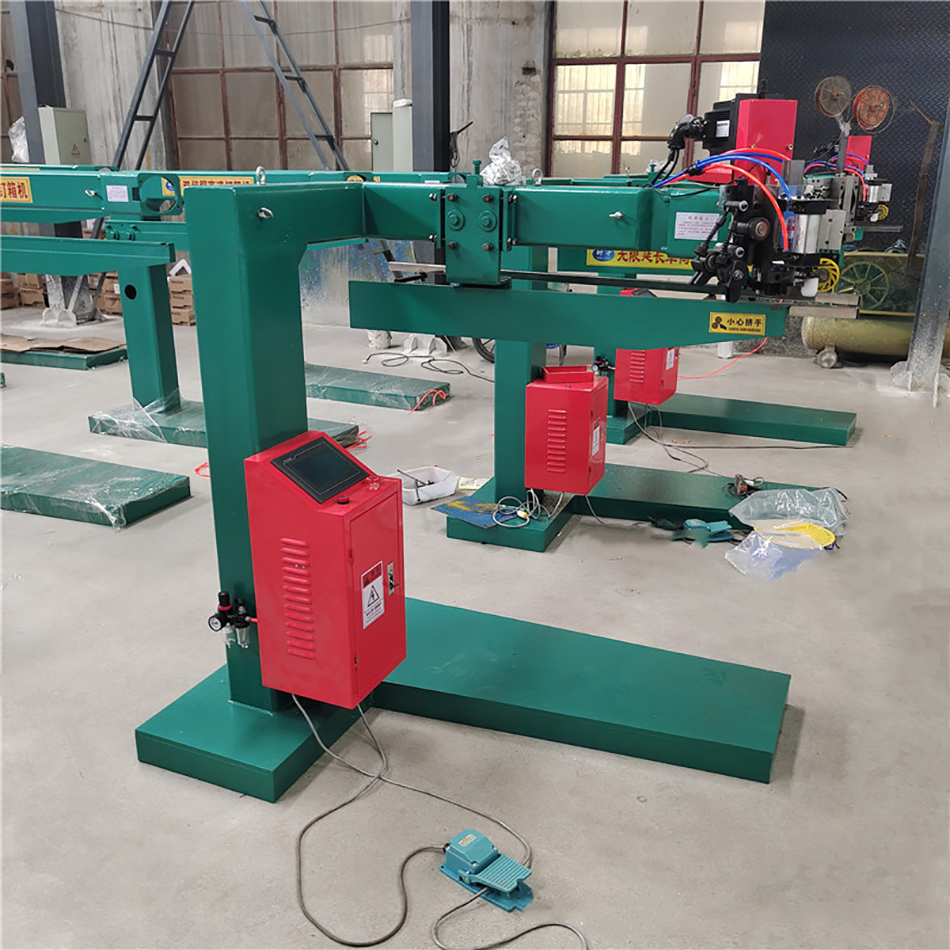

1.  The adjustment of carton box size and the distance of stitching only need one minute on touch screen which save time and make operation easily.

2.  Equipped with photo-electric sensor for the paper feeding table and automatic lifting when feeding carton.

3.  With the automatic counting function at the back part, the finished carton can be delivery to the conveying device by stack as the setting number (1--99) which is convenient for bundle.

4.  The Gap of carton press rubber wheel can be electric adjustment.

5.  Automatic wire feeding system, 20 kg flat wire holding, saving time.

6.  The computer can store 1000 orders.


1. Suitable for 3-ply 5-ply 7-ply corrugated cardboard.

2. Can stitch carton box with cover or carton box without cover.

3. It can stitch single flat wire, double flat wire, strengthen wire (two side double line stitch and middle single staple) finishing in one time. It can meet different demand for different stitching type.

Machine Model


Max sheet size(A+B)*2 (mm)

3800 mm

Min sheet size(A+B)*2 (mm)

800 mm

Max carton length A (mm)

1140 mm

Min carton length A (mm)

250 mm

Max carton width B (mm)

760 mm

Min carton width B (mm)

150 mm

Max carton height(C+D+C) (mm)

3000 mm

Min carton height(C+D+C) (mm)

250 mm

Max wave cover part C(mm)

330 mm

Min wave cover part C(mm)

70 mm

Max carton height D(mm)

2000 mm

Min carton height D(mm)

150 mm

Max width of stitching E(mm)

40 mm

Stitching distance (mm)

30-120 mm

Paper feeding table height (mm)

900 mm

Stitching quantity


Stitching speed(times/min)

600 times/min

Machine weight(KG)

2000 kgs
