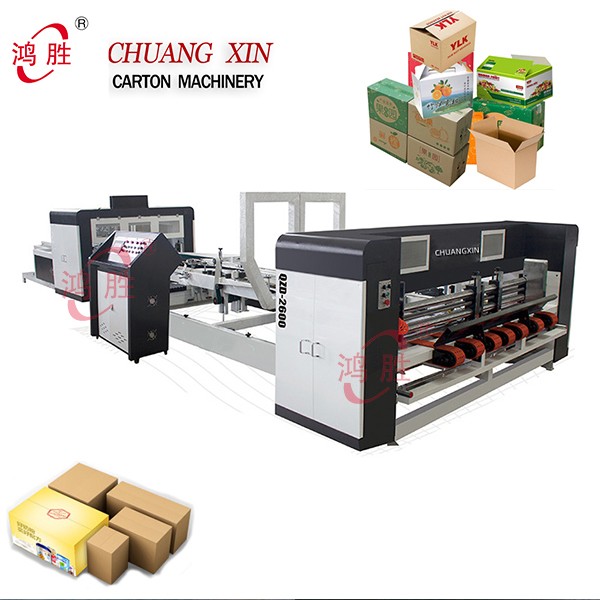

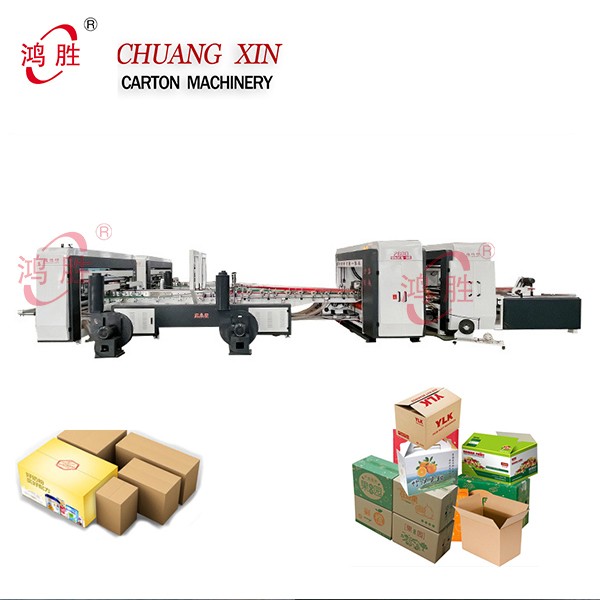

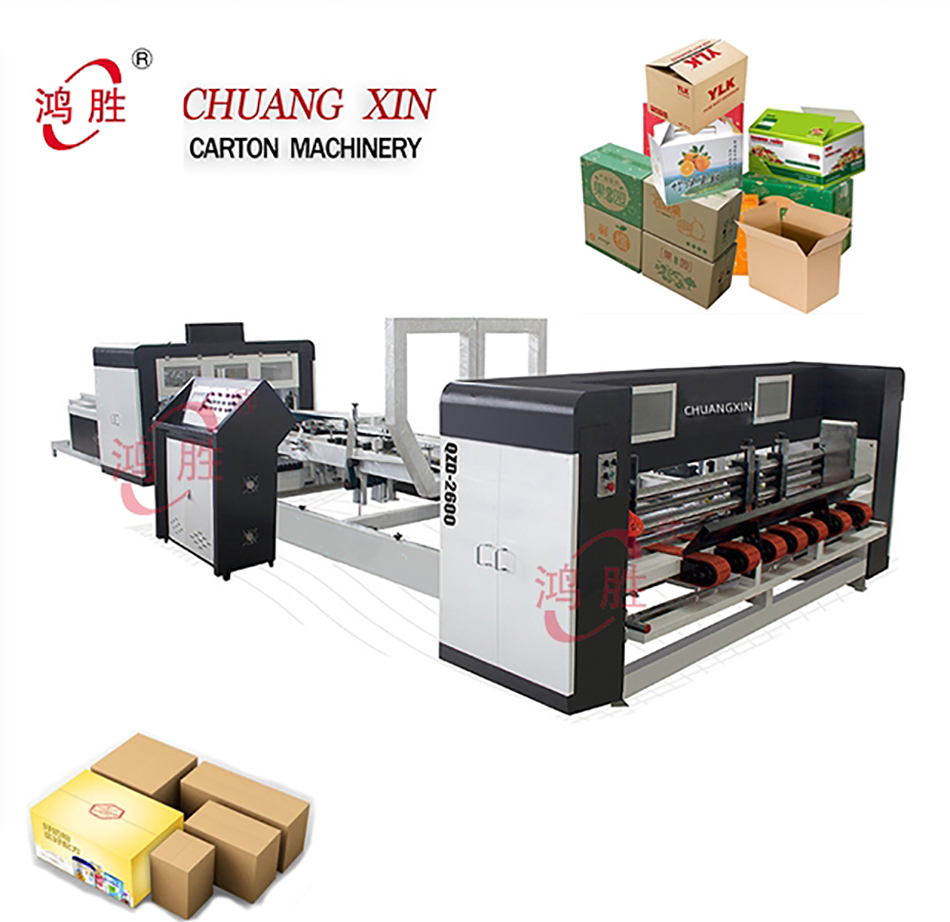

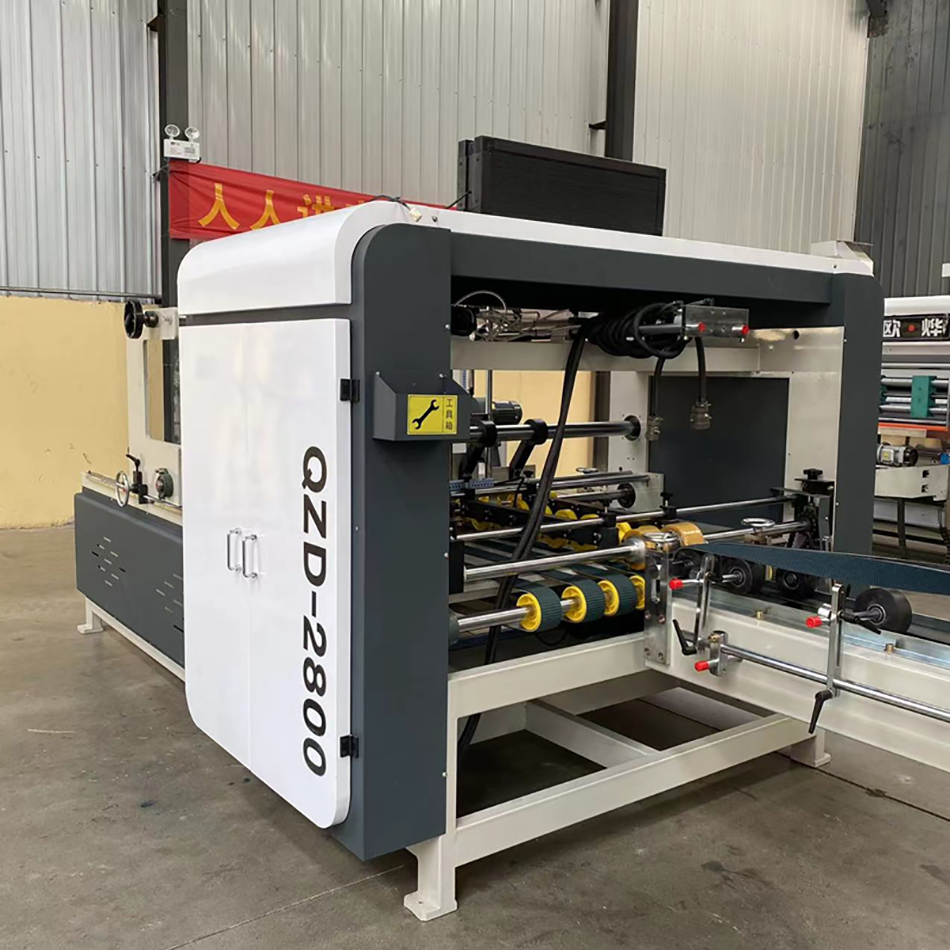

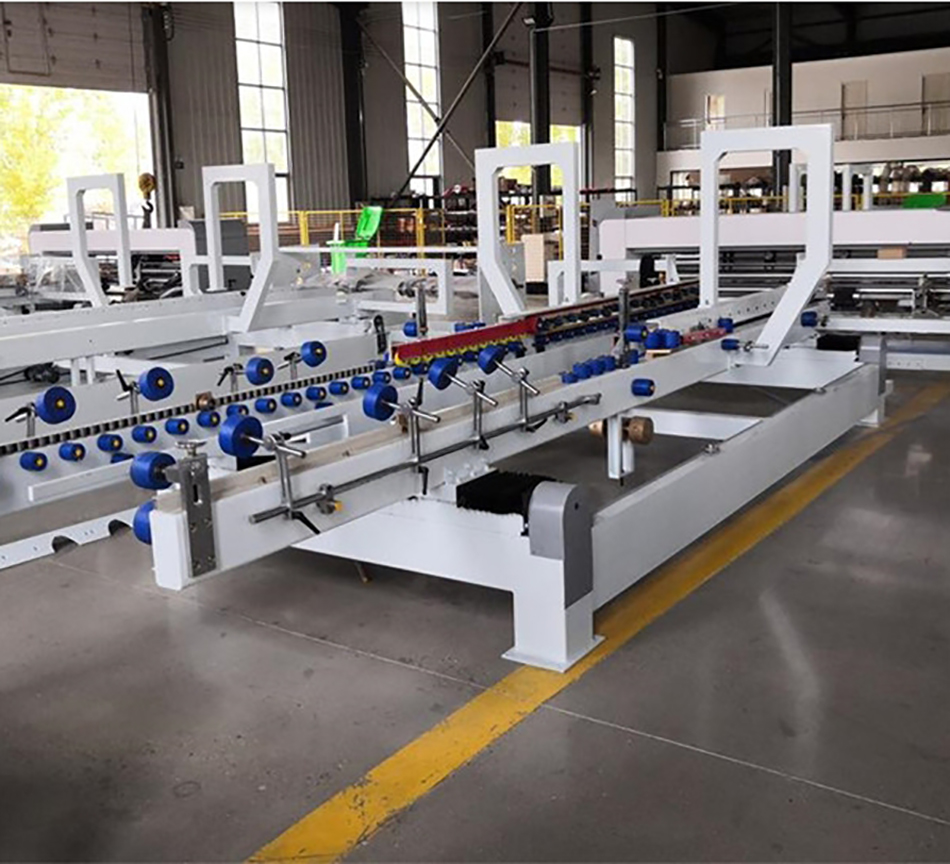

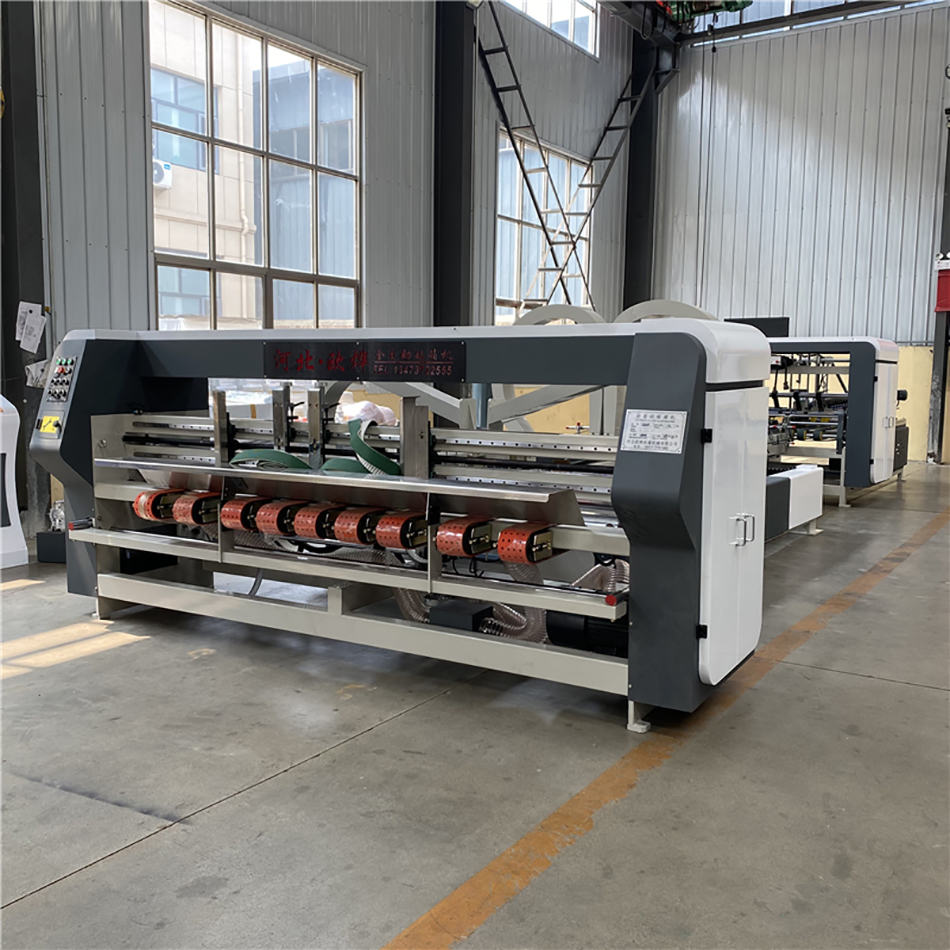

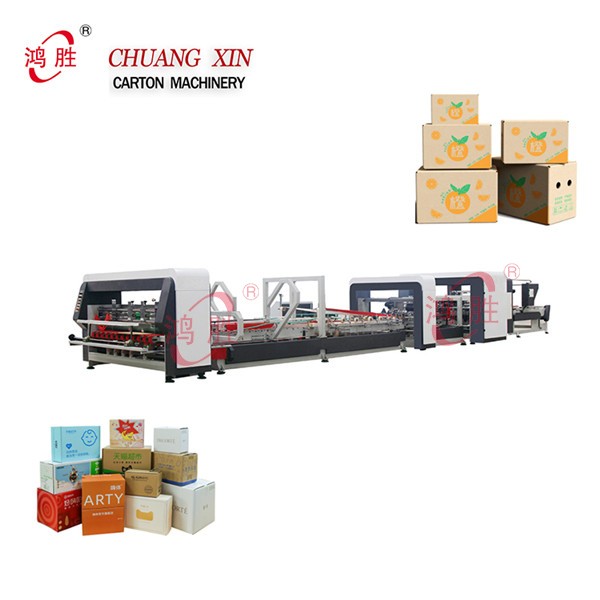

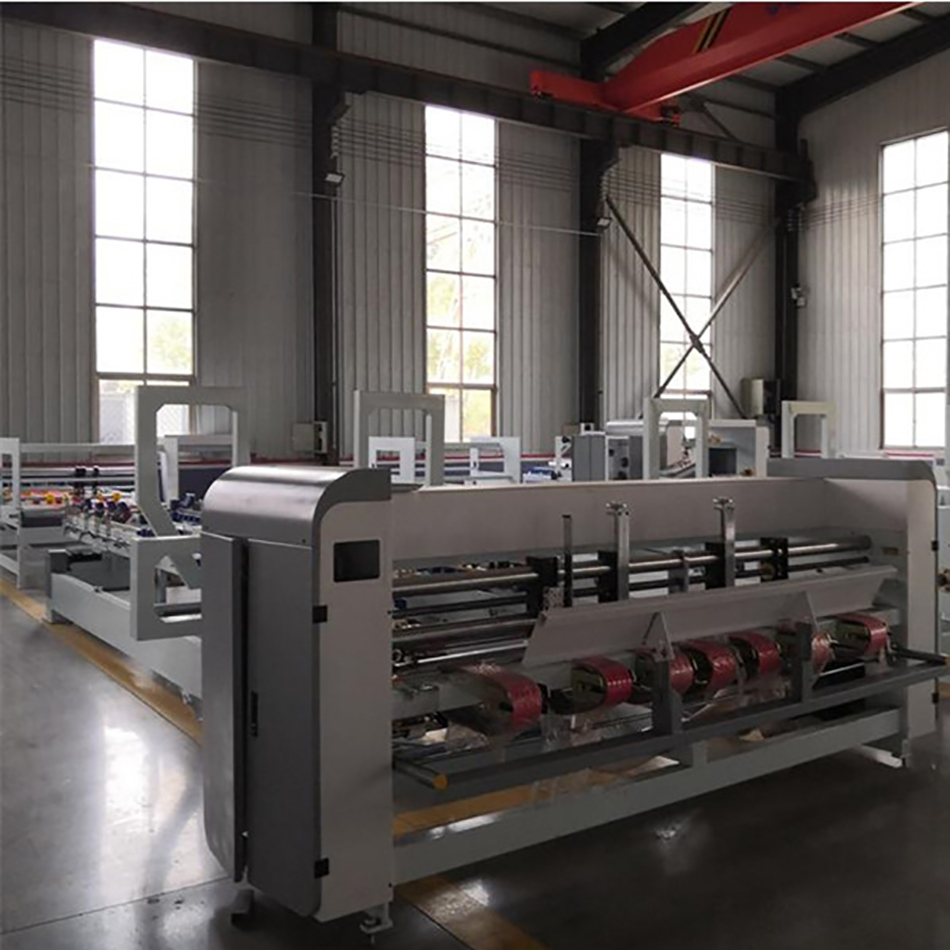

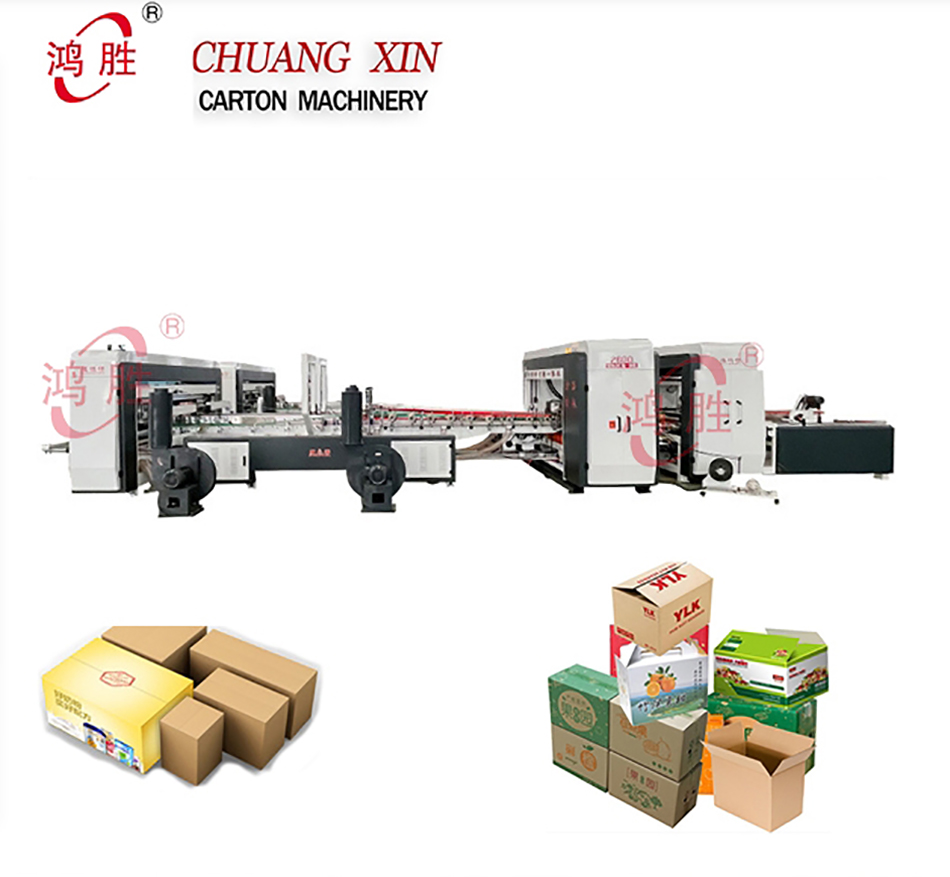

Auto Folder Gluer and Stitcher Machine

corrugated carton box automatic stitching machine plc computerized auto flat wire stitch stapling machinery price

Place of Origin: Hebei, China
Brand: chuangxin
Model: Payment and Shipping Terms:
MOQ: One set
Packaging Details: Tray
Delivery time: 50-60 days
Payment Terms: Wire Transfer Premium
  • Product Detail

Fully automatic carton gluing machine


Overview

Essential details

Warranty:1 Year

Type:Other

Applicable Industries:Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Printing Shops, Food & Beverage Shops, Other, Advertising Company

Showroom Location:None

Video outgoing-inspection:Provided

Machinery Test Report:Provided

Marketing Type:Ordinary Product

Warranty of core components:1 Year

Core Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition:New

Application:Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles

Packaging Type:Cartons, case

Packaging Material:Paper

Automatic Grade:Automatic

Driven Type:Mechanical

Voltage:380V 3P 50HZ

Power:20kw

Place of Origin:HenBei, China

Brand Name:CHUANG XIN

Weight:7000 KG

Key Selling Points:Competitive Price/Easy to Operate/High efficiency

Product name:Stitching And Folding Gluing Carton Box Folder Gluer Machine



★French Schneider original imported dual servo drive, accuracy, mechanical transmission part reduction, can effectively reduce the failure rate of machinery.

Weilan touch screen operation, parameters (nail distance, nail number, nail type, rear baffle) convenient and fast change. ★The whole control system adopts Japanese Omron PLC control system. ★Rear electric baffle, driven by stepper motor, accurate size, more convenient to change size. ★The full contactor in the control cabinet adopts Mitsubishi brand. ★The optoelectronic and proximity switches use schneider brand. ★Bottom die, blade made of Japan tungsten steel (wear - resistant). ★The whole group of nails are all made of special steel, computer gong precision machining. ★Can suit the different requirements of different customers. ★It takes only one minute to change the size of the carton and adjust the stitching distance of the carton, greatly saving time and convenient operation. ★The front feed unit counts automatically, and the feed table is equipped with photoelectric induction device, which rises automatically when feeding. ★The back section has an automatic counting function, and the finished sheets can be sent to the end of the feeding machine in stacks according to the set number (1-99), which is convenient for packing and strapping. ★Mechanical speed: 450 nails/min. ★Nail distance :200-260mm adjustable.Electric adjustment of press rubber wheel gap. ★Protection function of electrical isolating transformer of whole machine; ★Front and back baffle configuration, can order carton and small cardboard box, color box. ★Japanese special die steel forging for head punch body.

Size Information

largest size(A+B)X2

3600mm

Minimum length A

250mm

smallest size(A+B)X2

740mm

Maximum height D

2000mm

largest size(C+D+C)

3000mm

Minimum height D

150mm

smallest size(C+D+C)

250mm

Maximum nail tongue width E

40mm

Minimum shake cap C

50mm

Maximum feed height

900mm

Maximum shake cap C

560mm

Mechanical width

2850mm

Maximum width B

760mm

Mechanical weight (T)

1.5

Minimum width B

120mm

Mechanical speed (nails/min)

450

Maximum length A

1120mm

The number of order

1.99
