Success Case: Model 1226 Vacuum Adsorption 5-Color Printing Slotting Die-Cutter in Zhanjiang, Guangdong

A leading large-scale corrugated box packaging factory in Zhanjiang, Guangdong, a key hub for manufacturing and logistics in South China, was facing critical production challenges: surging market demand for high-quality multi-color printed cartons, the need for one-stop processing of complex carton forming procedures, and the pursuit of higher production efficiency while ensuring printing precision. After in-depth market research and on-site testing of multiple equipment models, the factory finally selected our Model 1226 Vacuum Adsorption 5-Color Printing Slotting Die-Cutter as the core equipment to upgrade its production line, and the project has achieved remarkable operational results since commissioning.

Core Challenges Faced by the Customer：

As a professional packaging solution provider serving various industries such as electronics, agriculture, and logistics in South China and Southeast Asia, the factory had the following pain points in its traditional production process:
1. Disconnected production procedures of printing, slotting, die-cutting and creasing, requiring multiple manual transfers and adjustments, leading to low overall efficiency and high labor costs.
2. Poor printing stability for special corrugated cardboard (2-9mm thickness), with frequent warping and misalignment issues, resulting in a high defective rate of multi-color overprinting.
3. Inability to meet the market's fast delivery requirements due to the low speed of old equipment, and long debugging time for switching between different carton specifications, failing to balance mass production and flexible customization.
4. High energy consumption and high failure rate of traditional equipment, increasing the factory's daily maintenance and operation costs.

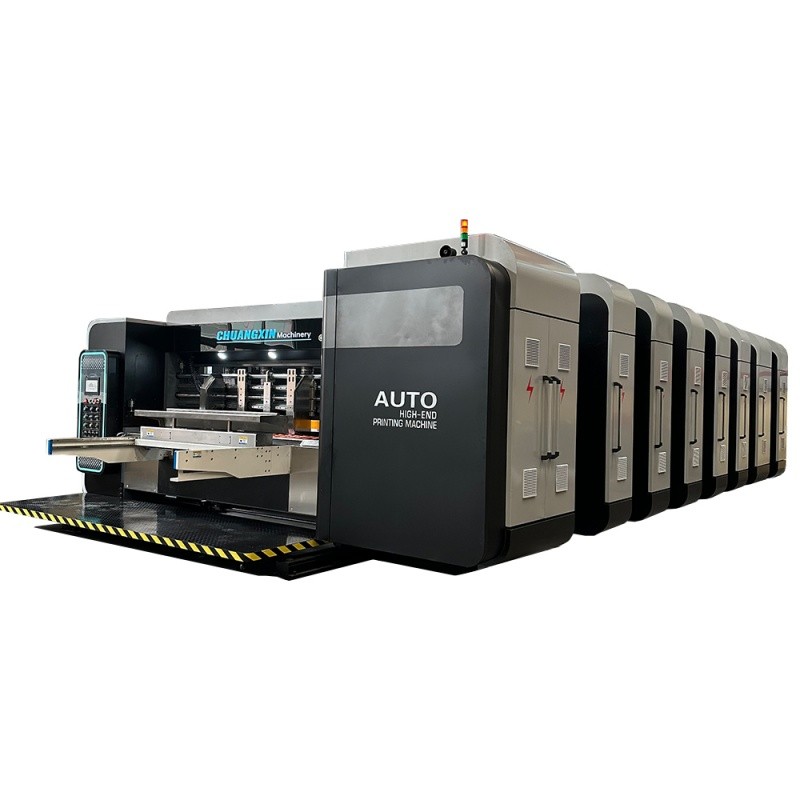

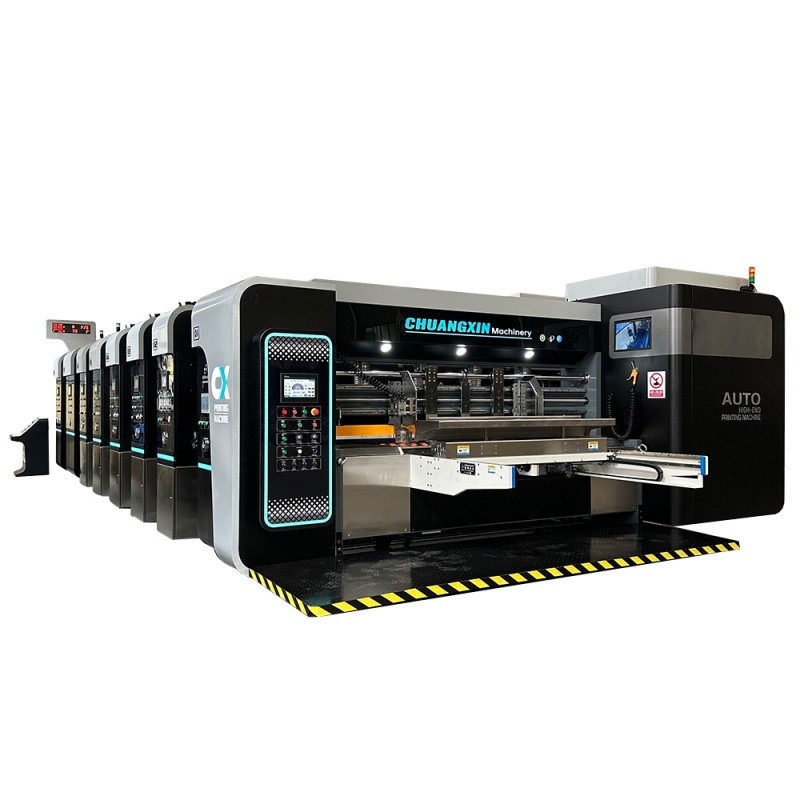

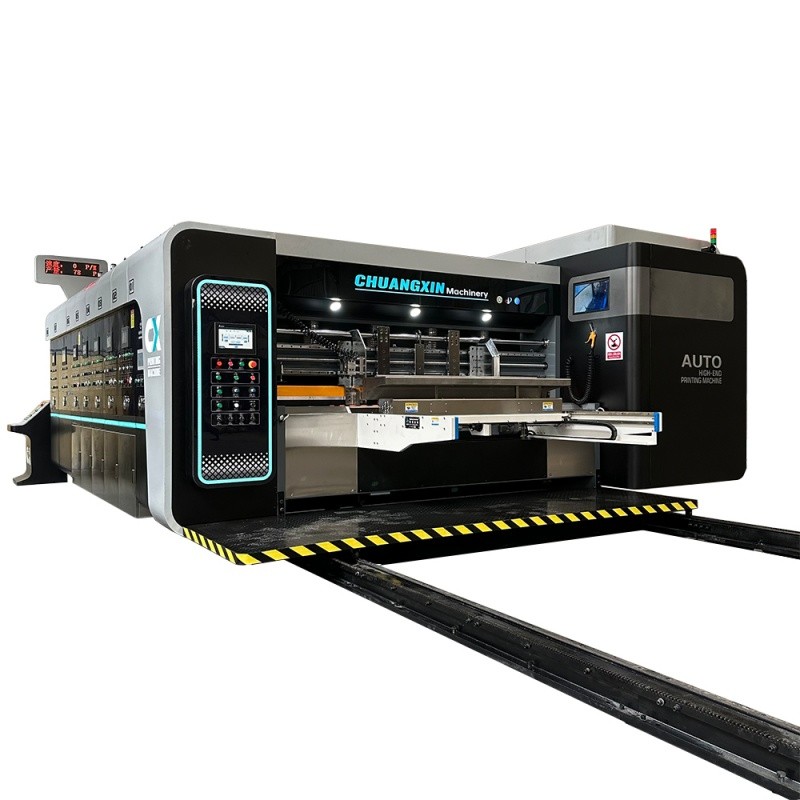

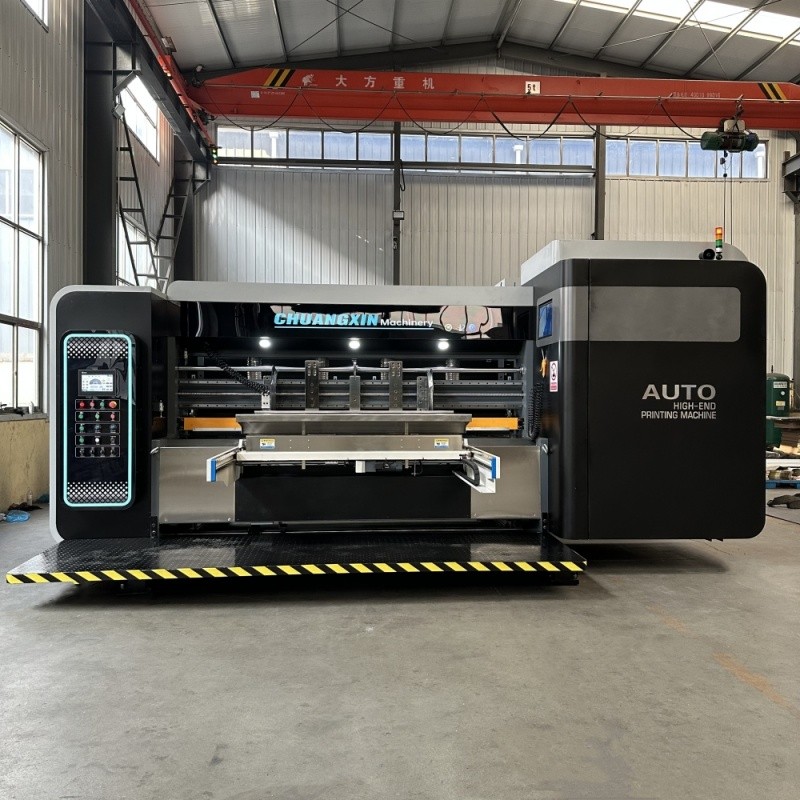

Customized Solution: Model 1226 Vacuum Adsorption 5-Color Printing Slotting Die-Cutter
Targeting the customer's pain points, we provided a fully integrated high-efficiency carton processing solution with the Model 1226 as the core, which features the industry's advanced vacuum adsorption and integrated processing technology, and is tailored to the customer's production scale and product characteristics:
• One-stop integrated processing: The machine completes 5-color printing, slotting, creasing, trimming, corner cutting, die-cutting and automatic stacking in one pass, eliminating intermediate manual links and fundamentally improving production efficiency.
• Stable vacuum adsorption feeding: Equipped with a high-precision lead edge vacuum suction feeder, it effectively solves the warping and misalignment problems of thick cardboard, with a printing precision of ±0.5mm, ensuring the consistency and clarity of multi-color overprinting for various corrugated cardboard.
• High speed & flexible adjustment: The machine has a maximum working speed of 220 pieces per minute and a maximum effective printing size of 1200*2400mm, meeting the demand for mass production; with PLC touch screen control and digital phase adjustment function, it supports one-key parameter setting and order memory, and the debugging time for switching specifications is shortened by over 80%, realizing flexible production of multiple carton types.
• Energy-saving & stable operation: Adopting VFD frequency conversion main motor and sealed spray lubrication system, the overall power consumption is reduced by about 30% compared with traditional equipment; all drive rollers and gears are made of quenched and tempered high-quality steel, with low noise, low wear and long service life, reducing daily maintenance costs.
• Intelligent & humanized design: Equipped with automatic fault alarm, pneumatic locking and waste removal systems, the operation is simple and the technical threshold for operators is low; the automatic stacking unit with a maximum stacking length of 2800mm ensures neat finished product collection and further reduces manual labor.
Remarkable Achievements After Commissioning
Since the Model 1226 equipment was put into formal operation, the customer's production line has achieved a qualitative leap, with the following key data improvements:
1. Production efficiency increased by 150%: The integrated processing mode and high-speed operation make the daily output of cartons reach over 100,000 pieces, fully meeting the customer's large-order and urgent-order delivery requirements.
2. Product defective rate reduced to below 0.3%: The stable vacuum adsorption feeding and high-precision printing system effectively control the defective rate of multi-color printing and forming, greatly improving the product qualification rate and reducing raw material waste.
3. Labor cost saved by 60%: The one-stop automatic production reduces the number of operators in the production line by more than half, and the simple operation mode reduces the training cost of new employees.
4. Comprehensive operation cost reduced by 35%: The energy-saving design and low failure rate cut down the factory's monthly electricity and maintenance costs, and the equipment's long service life further improves the return on investment.
5. Market competitiveness enhanced: The high-quality multi-color printed cartons produced by the new equipment have won high recognition from downstream customers, helping the factory expand its market share in the Southeast Asian packaging market and obtain more high-end customization orders.
Customer Feedback
The production manager of the Zhanjiang packaging factory said: "The commissioning of the Model 1226 Vacuum Adsorption 5-Color Printing Slotting Die-Cutter has completely changed our traditional production mode. Its high efficiency, stability and flexibility not only solve our long-term production pain points, but also make our product quality reach a new level. The professional pre-sales debugging and timely after-sales technical support of the supplier also make us very satisfied. We plan to continue to cooperate with the supplier to upgrade more production lines and build a more intelligent and high-efficiency carton production base."
Our Commitment
As a professional manufacturer of carton machinery, we have always been committed to providing customers with high-quality, customized and efficient packaging equipment solutions, and providing a full range of services including pre-sales on-site survey, customized design, in-situ installation and commissioning, operator training and after-sales 24-hour technical support. The successful application of the Model 1226 in this large Zhanjiang packaging factory is another proof of our equipment's performance and service strength in the high-end carton processing field.
We will continue to focus on technological innovation and product upgrading, and provide more competitive carton machinery and solutions for global packaging enterprises, helping customers improve production efficiency, reduce operation costs and enhance market competitiveness.
Contact Us
If you are also looking for a high-efficiency and stable multi-color printing slotting die-cutting solution for your carton production line, please contact us immediately. Our professional team will provide you with acustomized equipment configuration plan a ccording to your actual production needs
