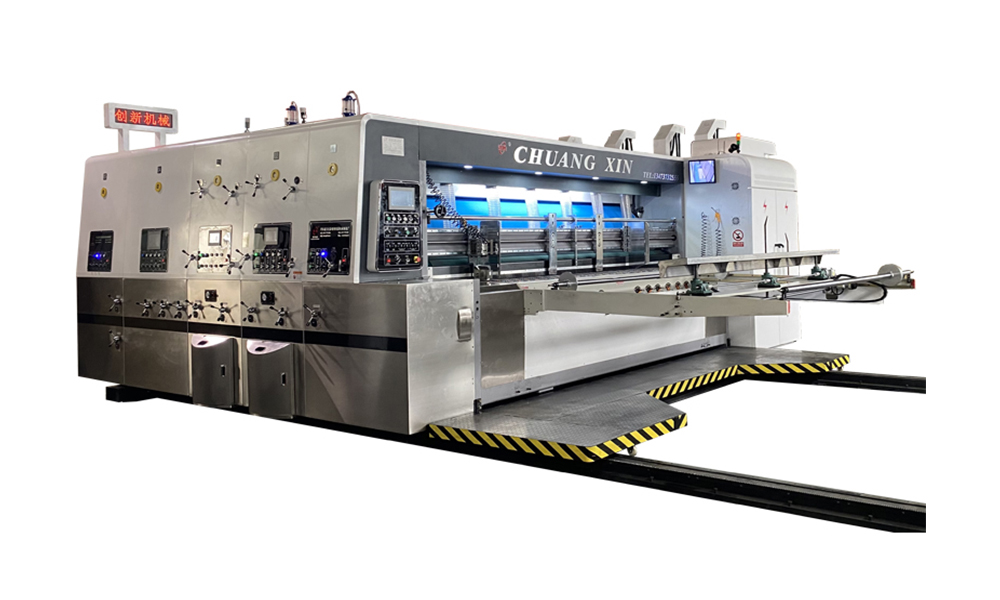

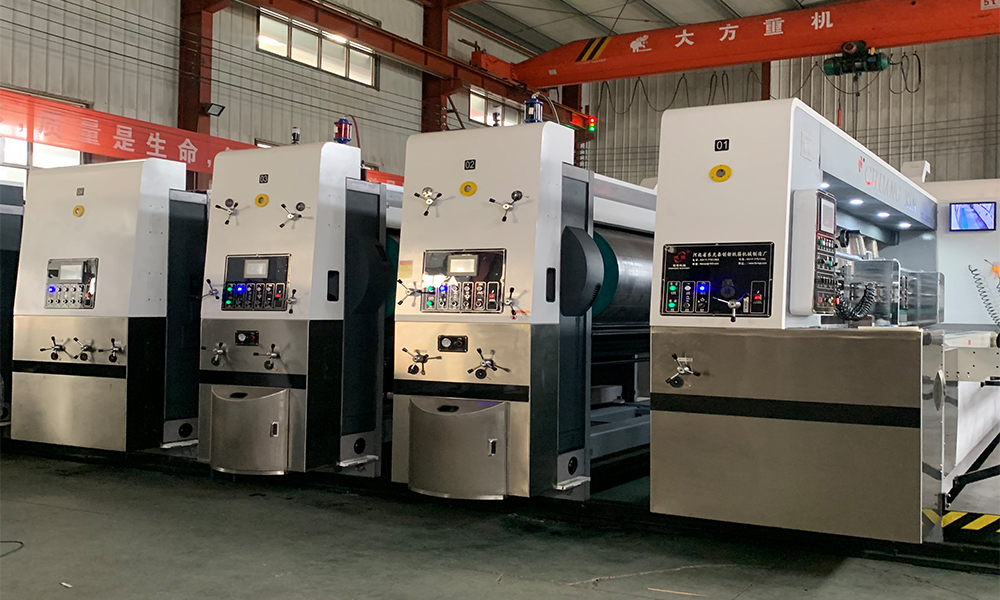

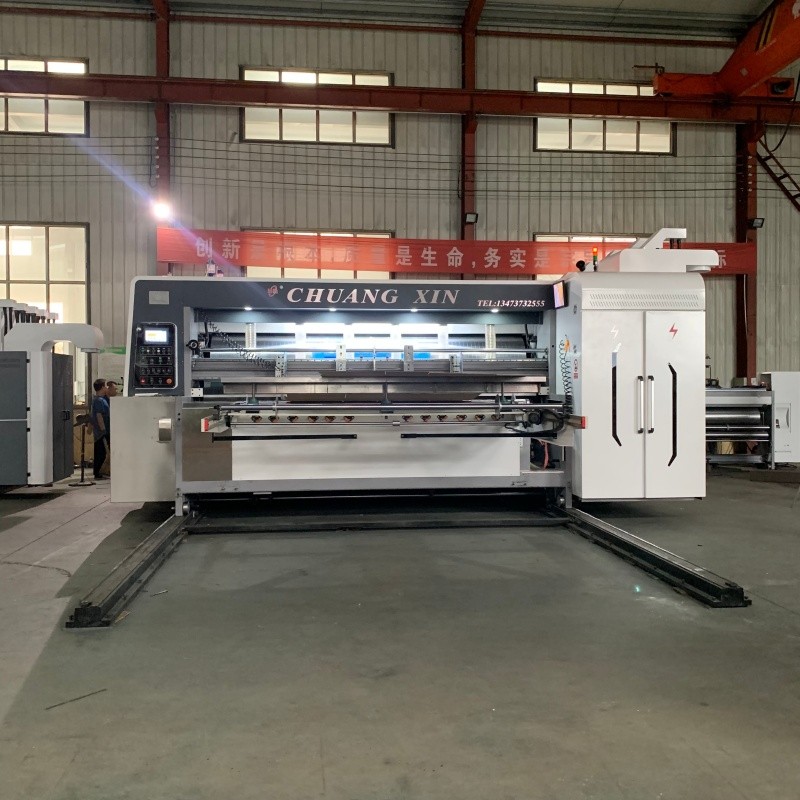

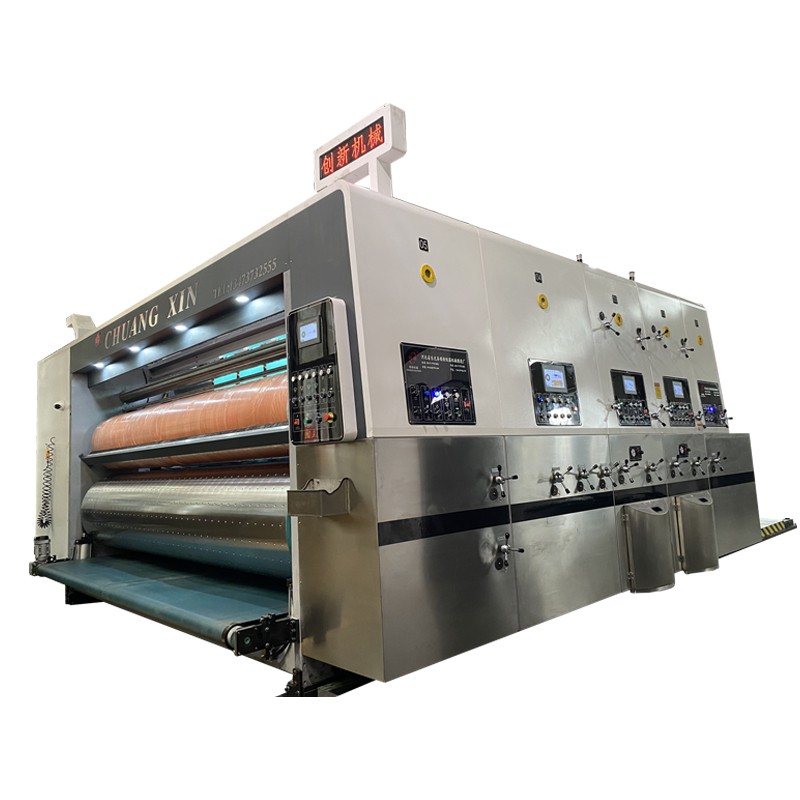

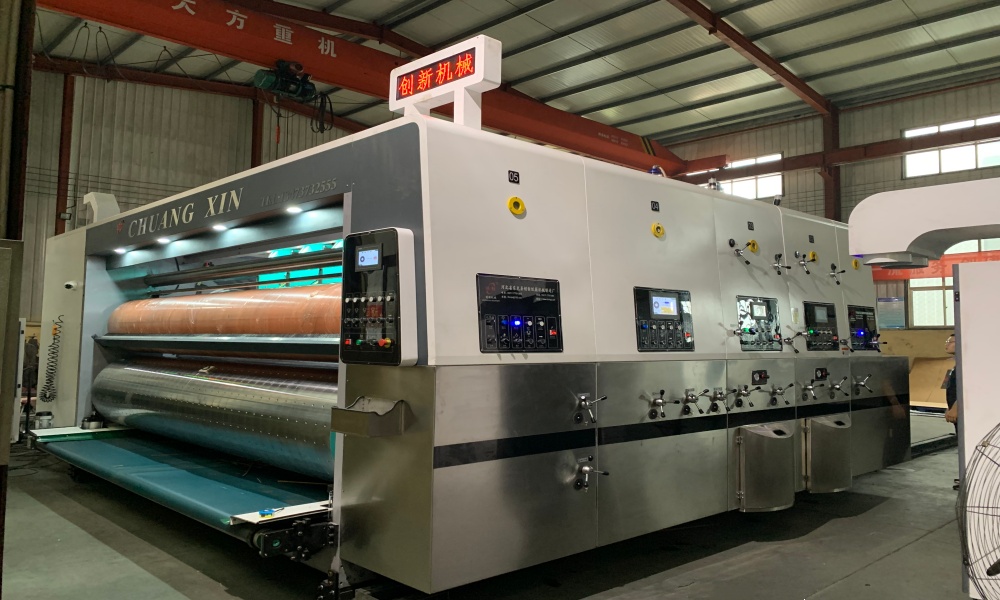

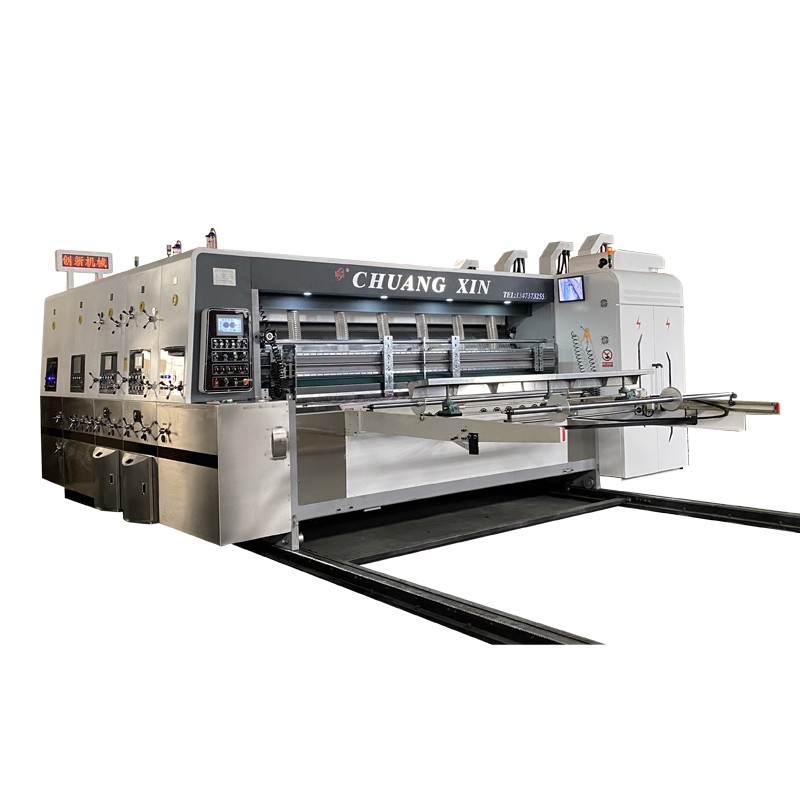

Large Carton Multi-Color Printing Slotting Die Cutting Machine
- Product Item : 08
- Category： Carton printing machine
- Jumbo Flexo Folder Gluer
- Jumbo Carton Box
- Fully Automatic Carton Box Making Machine
- Carton Printing
Large Carton Multi-Color Printing Slotting Die Cutting Machine
JUMBO
Want to make large size carton box ? Our C1 Jumbo machine help you achieve the production goal!Two Colors Flexo Printer Slotter Die-cutter Machine.
2 Color Flexo Printing Machine Features：
1、This automatic carton box making machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
2、Auto high quality materials and parts.
3、Well hardened and ground transmission gears, hardness more than 60(HRC).
4、Auto zero return and auto reset.
5、Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
6、All cylinders and rollers are chromed plated for ideal hardness.
7、PLC control system with touch screen control.
8、Able to save order,speed up the order shift.
9、All electronic and pneumatic components are with European standards.
10、Lead edge feeder or kick feeder is for choice.
|
Data/Model |
1600*3600 |
2200*3600 |
2200*4000 |
2200*4600 |
2200*5300 |
2600*3600 |
2600*4000 |
2600*4600 |
2600*5300 |
|
Printing Speed(m/min) |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
160 |
|
Max.Machine Speed(pcs/min) |
120 |
100 |
100 |
100 |
80 |
80 |
80 |
80 |
80 |
|
Max.Feeding Size(mm) |
1570x3600 |
2100x3600 |
2100x4000 |
2100x4600 |
2100x5300 |
2500x3600 |
2500x4000 |
2500x4600 |
2500x5300 |
|
Min.Feeding Size(mm) |
450x760 |
550x900 |
550x900 |
550x900 |
550x900 |
650x900 |
650x900 |
650x900 |
650x900 |
|
Max. Printing Area(mm) |
1540x3600 |
2080x3600 |
2080x4000 |
2080x4600 |
2080x5300 |
2480x3600 |
2480x4000 |
2480x4600 |
2480x5300 |
|
Thickness of Printing Plate(mm) |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
7.2 |
|
Min. Panel(mm) Slot Type L. |
280x100x280x100 |
330x110x330x110 |
330x110x330x110 |
330x110x330x110 |
330x110x330x110 |
360x110x360x110 |
360x110x360x110 |
360x110x360x110 |
360x110x360x110 |
|
Max. Slotting Depth(mm) |
560 |
750 |
750 |
750 |
750 |
850 |
850 |
850 |
850 |
|
Max. Thickness of Sheet(mm) |
12 |
12 |
12 |
12 |
12 |
12 |
15 |
15 |
15 |
|
Dimension(LxWxH) T |
19852x6670x2700 |
21173x6670x2800 |
21173x7070x2800 |
21173x7670x2800 |
21173x8370x2800 |
22495x6670x3000 |
22495x7070x3000 |
22495x7670x3000 |
22495x8370x3000 |
Automatic Carton Printing Machine Advantages:
1、CNC control system (Intelligent Control)
2、Environmental Protection and Energy Saving, use washable ink;
3、Apply to box for big household appliances such as refrigerator, air-conditioner, and heavy industrial box, such as motorbike, auto spare parts.
4、Able to print and make honeycomb box.
Our Research and Development:
CHUANGXIN has a perfect Research and Development system, and owns a high level R&D team, leading capability of independent innovation, and complete producing, processing and manufacturing capability. We has Full computer gantry boring and milling machining center, CNC pentahedron boring and milling machine, 5 meter grinding machine etc.
