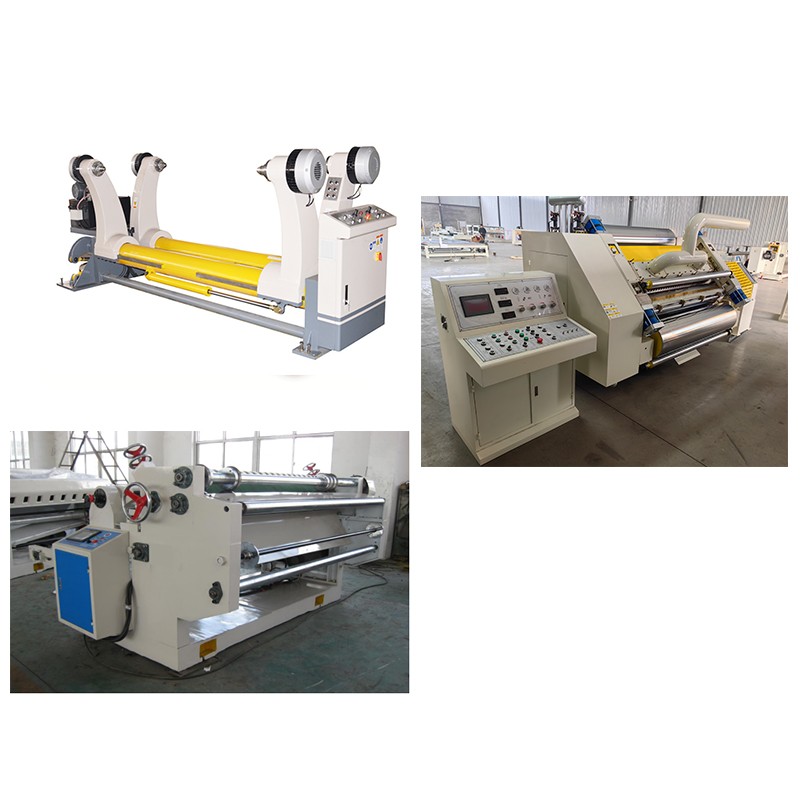

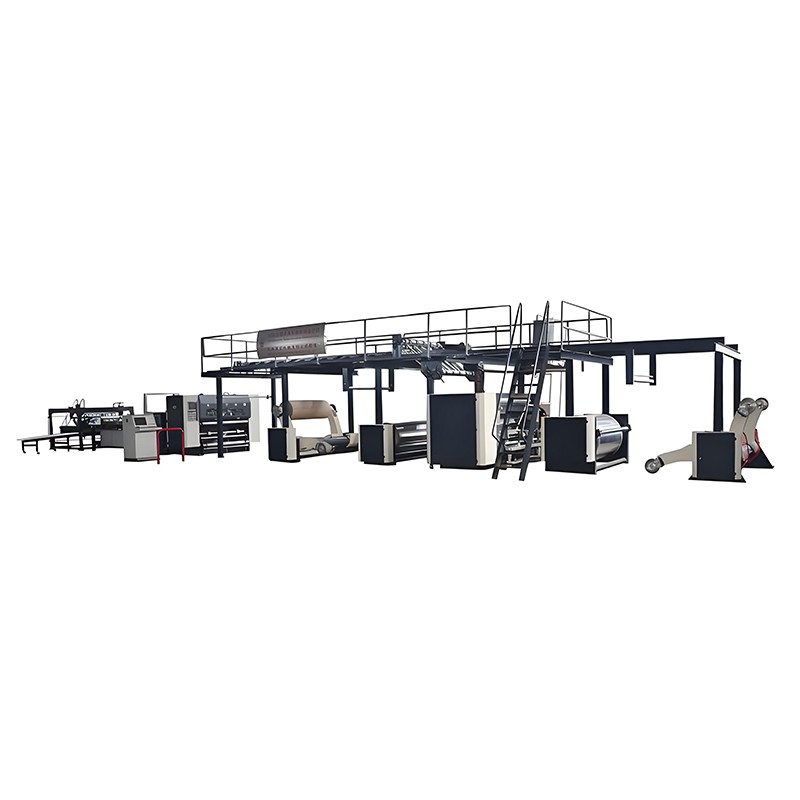

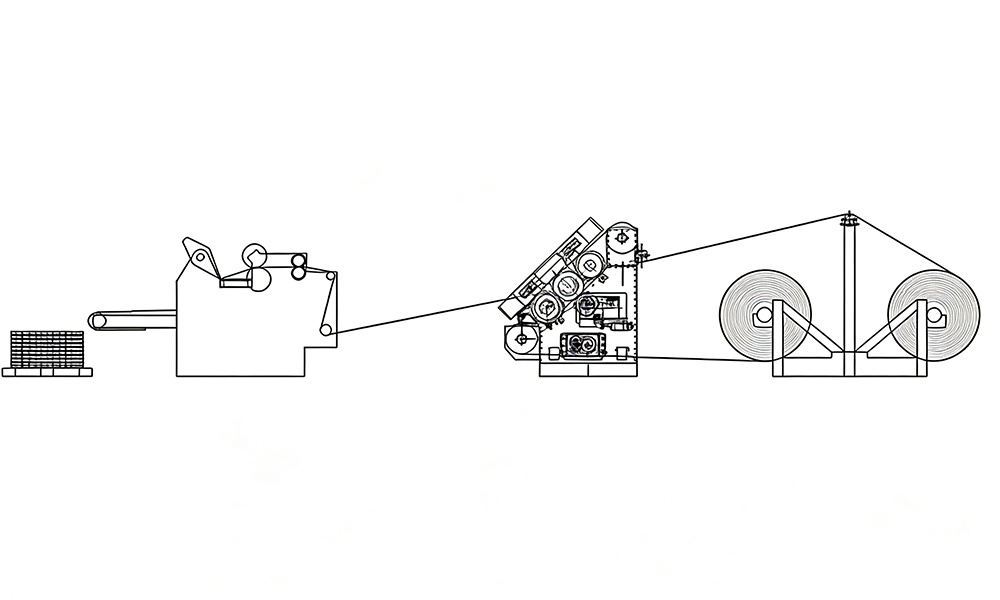

Our high speed 2-ply corrugated cardboard production line integrates a hydraulic mill roll stand, pre-heater, single facer corrugator machine, and NC slitter scorer cut off stacker machine for efficient and high-quality cardboard production. This cardboard corrugating machinery combines stability, precise temperature control, accurate corrugation, and computerized cutting and stacking, making it ideal for high-speed production of high quality 2-ply corrugated cardboard, essential for diverse packaging needs.

TECHNICAL PARAMETERS

Model	Speed (m/min)	Size (mm)
OY-1400-2	120/150/180	1400
OY-1600-2	120/150/180	1600
OY-1800-2	120/150/180	1800
OY-2000-2	120/150/180	2000
OY-2200-2	120/150/180	2000
OY-2500-2	150/200/180	2500

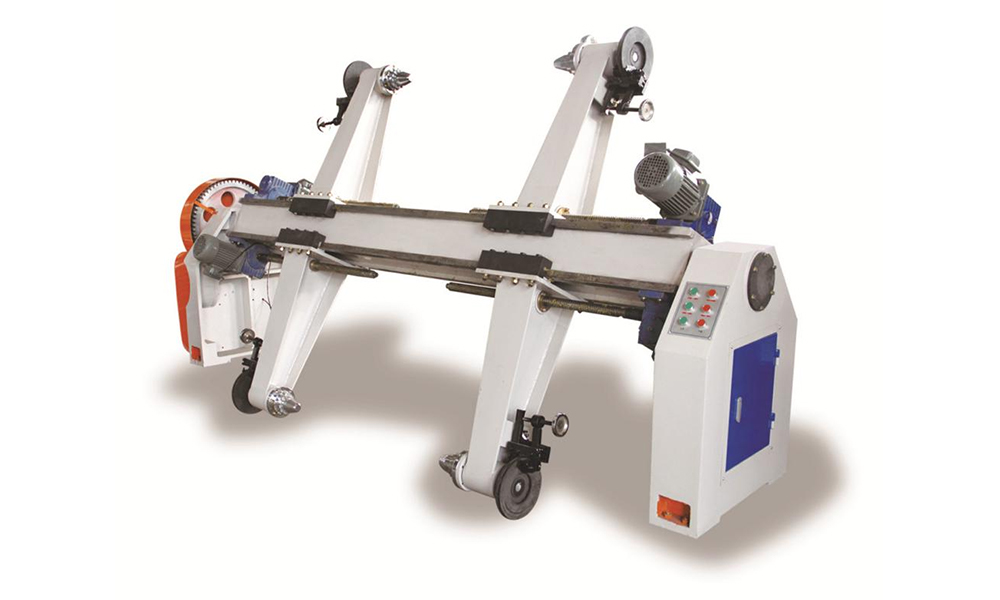

CX-B Series Electric Shaftless Mill Roll Stand（Optional equipment）
That is the shaftless mill roll stand which is divided into electric and hydraulic types. Firstly, allow me to introduce the electric one to you. Our ZJ-F electric shaftless mill roll stand is used for supporting and fixing the paper rolls.

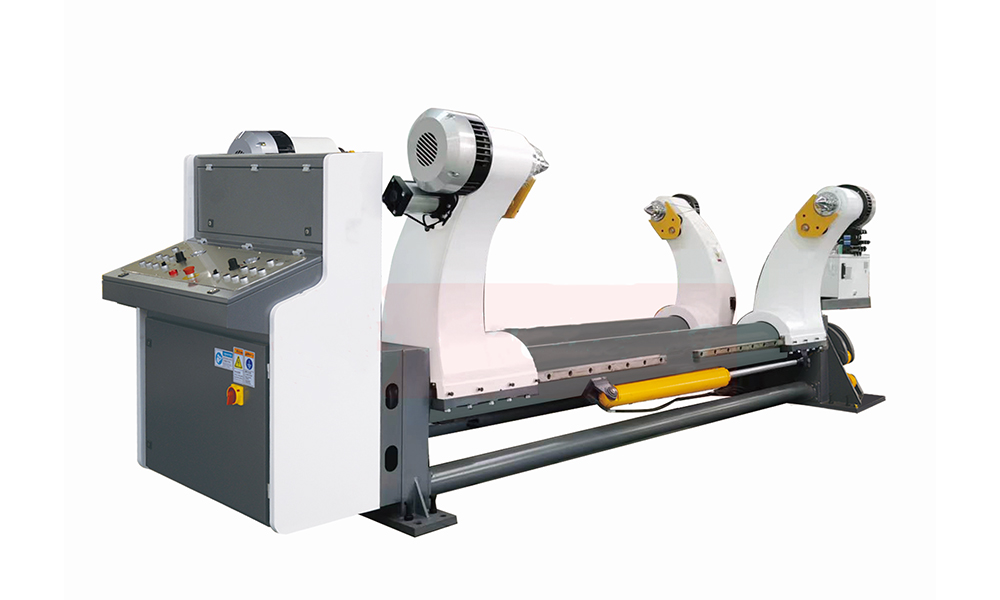

OY-B Series Hydraulic Shaftless Mill Roll Stand（Optional equipment)
The hydraulic shaftless mill roll stand, similar to the electric one, is also used for supporting and fixing fluting paper rolls. The arms, however, is driven by hydraulic pressure, clamping, lifting and adjusting the paper rolls.

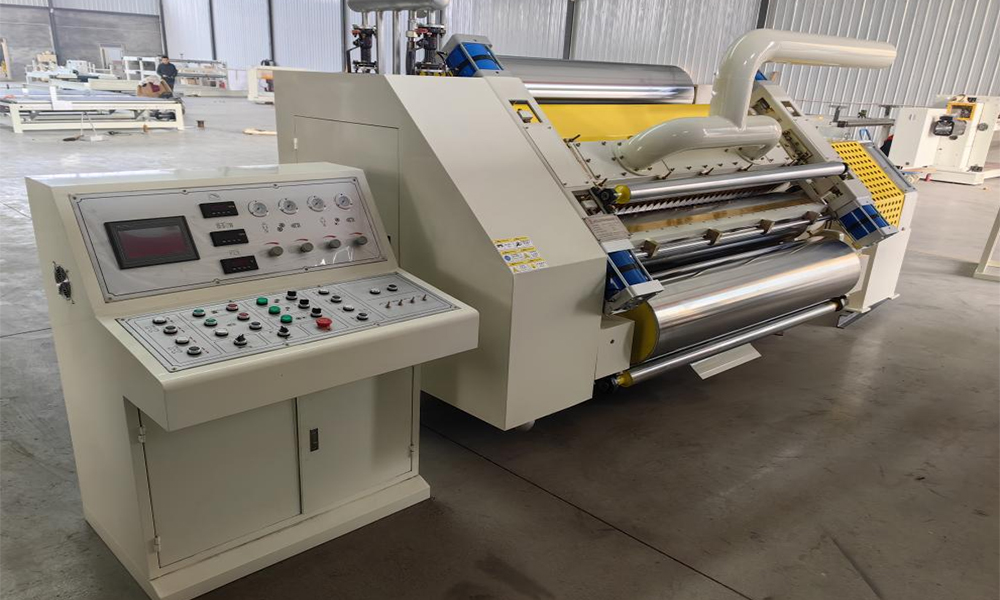

Electrical Heating Single Facer

Effective Width		1600mm
Corrugated Rollers		Dia. 280mm with a drum. 48CrMo high quality alloy steel,rigidity HRC58°-60°The surface of corrugated roller is whetted and plating chrome, with heat treatment
Preheater roller		Diameter:320 mm, 45 # seamless pipe
Press Roller		269mm,surface is whetted and plating chrome, pneumatic to control the up & down, materials: 45# steel,quenched and tempered
Glue Roller		φ215mm, surface of the roller is with 25 line concave cross marked
Diameter of glue scrach roller		110mm, surface of the roller is s whetted and plating chrome
Style of Transmit Paper		Chain drive
Style of Control Roller		Pneumatic control the upper roller, pressure roller and glue roller
Lubrication		Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller
Built-in Corrugated Roller		Profile A,B,C,E,F Flute (Other Flutes are optional)
Power of Draw Fan		7.5kw
Drive		Drive Motor with frequency inverter:7.5 kw
Power of Silica Tube	Up Corrugated Roller	4 pieces	16kw
	Down Corrugated Roller	4 pieces	16kw
	Pressure Roller	4 pieces	16kw
	Pre-heater Roll	4 pieces	16kw

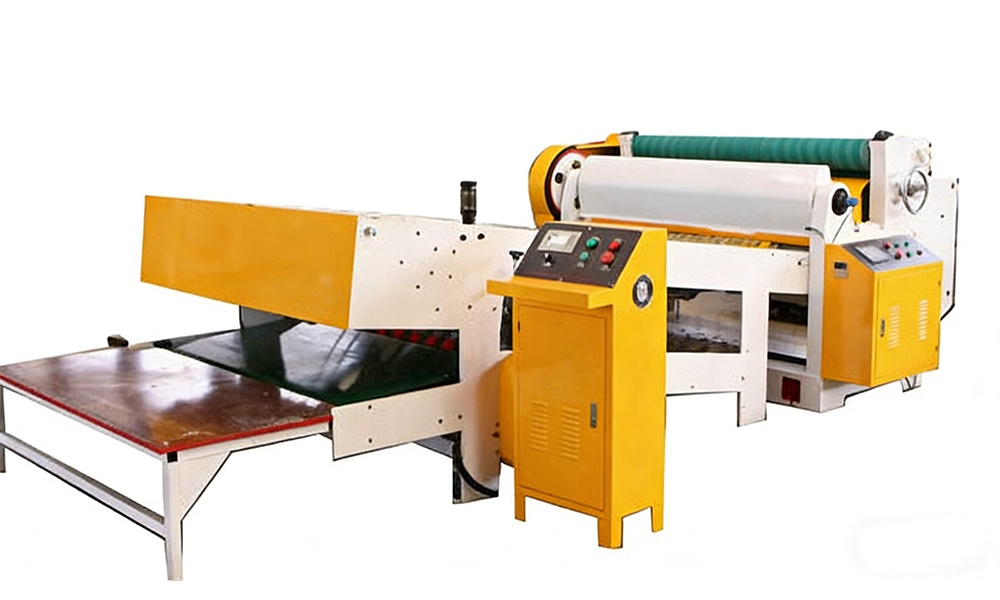

CX-B SeriesRotary Cutter

*Storing 99 sets of orders, change the order quickly and accurately with non-stop machine, and realize computer networking to easy for production management
*The cutter shaft transmission gear is installed with an eccentric shaft to realize no backlash transmission and high transmission precision
*The knife use an inlaid steel blade,the fixed seat blade has a flat structure, which is more stable, more suitable for cutting high weight and high toughness cardboard, small shear force and long blade life
*The paper-feeding roller is covered with anti-slip material, which is more wear-resistant and accurate in size
*The machine base and wallboard use high-grade gray cast iron,with high strength and strong vibration resistance
*The servo controller controls the motor drive, and the 5.7-inch color touch screen display
Automatic stacker（Optional equipment）
1. The Max. Speed of coloection paper:70m/min
2.The Max. Length of collection paper :1200mm
3.This machine can be collected at the same time at most 4 pieces of paper
4.The machine can realize count automatically, automatic stacking, automatic stamping
5.Stacker hight:100mm
6.The machine have special leading edge Aligning institution
7.The automatic stacking machine cost is low,Small footprint, save manpower,Is the best choice of medium-speed fitting machine.
8.floor area:3.8*1.9m
