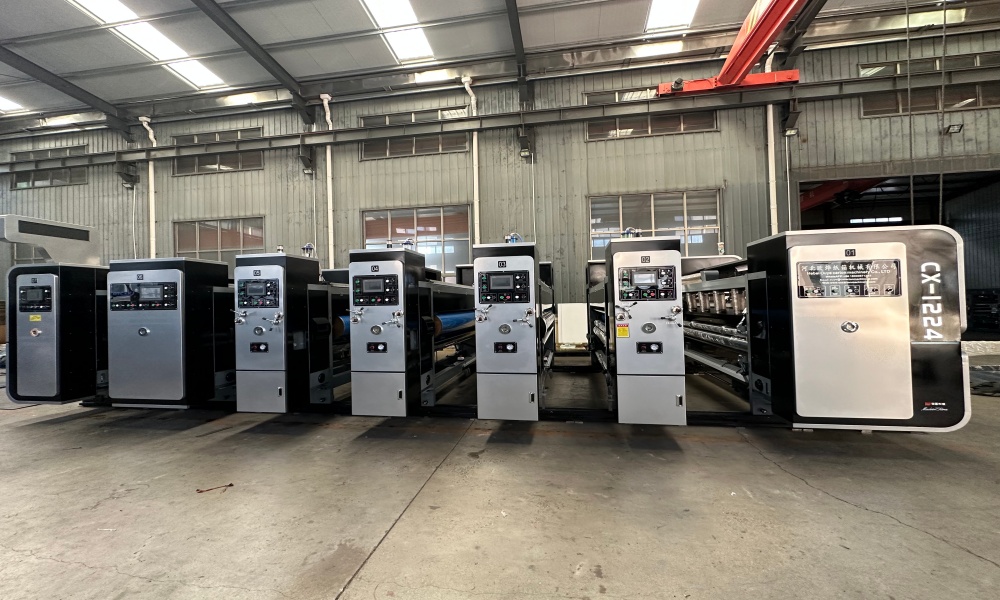

Equipment highlights：

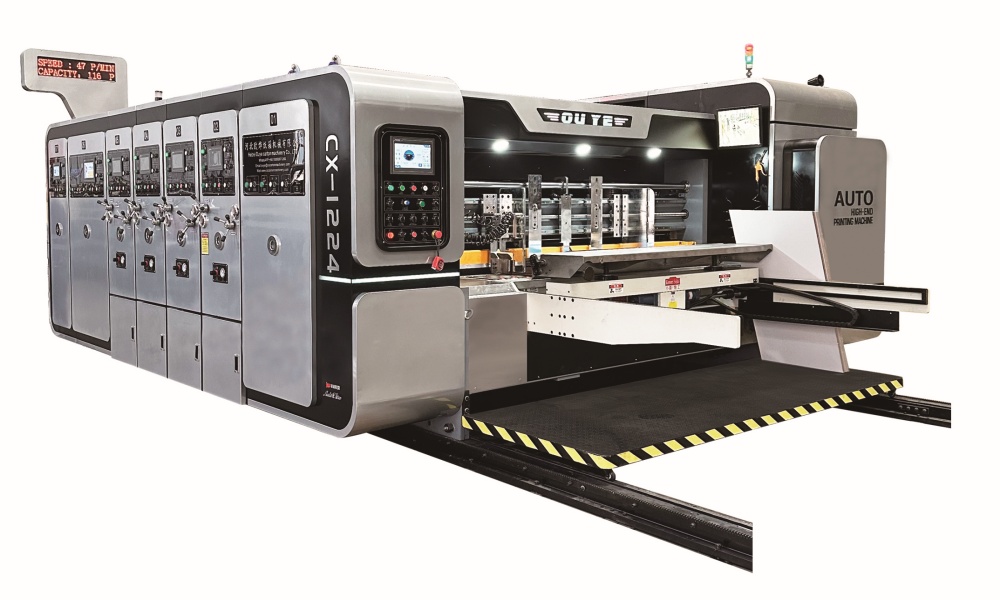

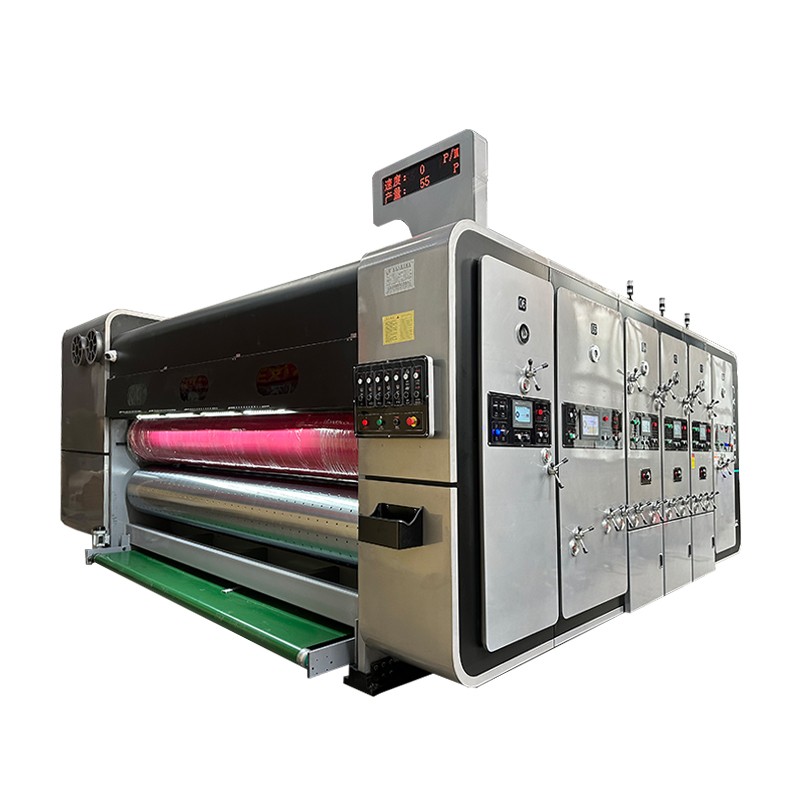

CHUANGXIN series auto flexo printer slotter die cutter and stacker is mainly used for printing high quality colors on corrugated cartons. It is especially suitable for polychrome printing.

Model	0922	1022	1224	1228	1426	1628
Maximum speed (piece/min)	300	280	260	260	240	180
Paper feeding precision(mm)	±1.0	±1.0	±1.0	±1.0	±1.0	±1.0
Maximum feed size(mm)	900*2200	1000*2200	1200*2400	1200*2800	1400*2600	1600*2900
Mnimum feed size(mm)	260*600	280*600	350*600	380*600	380*600	420*600
Size of drawing paper(mm)	1100*2200	1300*2200	1500*2400	1500*2800	1700*2600	1900*2800
Maximum printing area(mm)	880*2200	980*2200	1180*2400	1180*2800	1380*2600	1580*2800
Printing set(mm)	±0.5	±0.5	±0.5	±0.5	±0.5	±0.5
Thickness of standard printing  plate(mm)	5mm	5mm	5mm	5mm	5mm	5mm
Minimum slotting interval (mm)	160*160	160*160	160*160	160*160	160*160	160*160
Sloting accuracy(mm)	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5
Die cuting precision(mm)	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5

MAIN FEATURES:

1.This type of corrugated box making machine employs advanced belt type lead edge feeder which ensures easy operation, making feeding fast, stable and precise.

2.Our auto flexo printer slotter die cutter and stacker comes with a 7 inch color touch screen which is favorable for order pre-set (200 orders can be pre-set), order inquiry, order memory and readout, synchronous zero set, automatic and manual phase adjustment, parameter management, automatic inking and automatic display of production quantity and speed.

3.All adjustments are available in computer control and motorized control, adapting to user habits and convenient for user selection.

4.The drive rollers of this auto flexo printer slotter die cutter and stacker are all made of high quality steel pipes which have experienced thermal refining, hard chromium plating, correcting and drilling balancing, hence ensuring stable running. Gears are made from high quality alloy steel through quenching treatment.

5.The clearance between rollers can be adjusted depending on the self locking function of worm gear case. Disc handle seat makes it more convenient and faster.

6.Lateral and longitudinal movement of slotting knife are motorized adjust. Box height is also motorized adjust.

7.The die cutting part of this auto flexo printer slotter die cutter and stacker is equipped with speed-limited compensation mechanism so that the die cut roller can move crosswise 40mm.

8.This carton machinery also boasts printing and slotting memory functions, ensuring automatic zero set and automatic slotting reset. The slitter is driven by ball screw, keeping stable operation and high accuracy.

9.Main electrical elements comply with European quality standard.

10.The high speed auto flexo printer slotter, die cutter and stacker, with computer memory function, can memorize 999 orders. The highest speed can reach 300 sheets per minute.

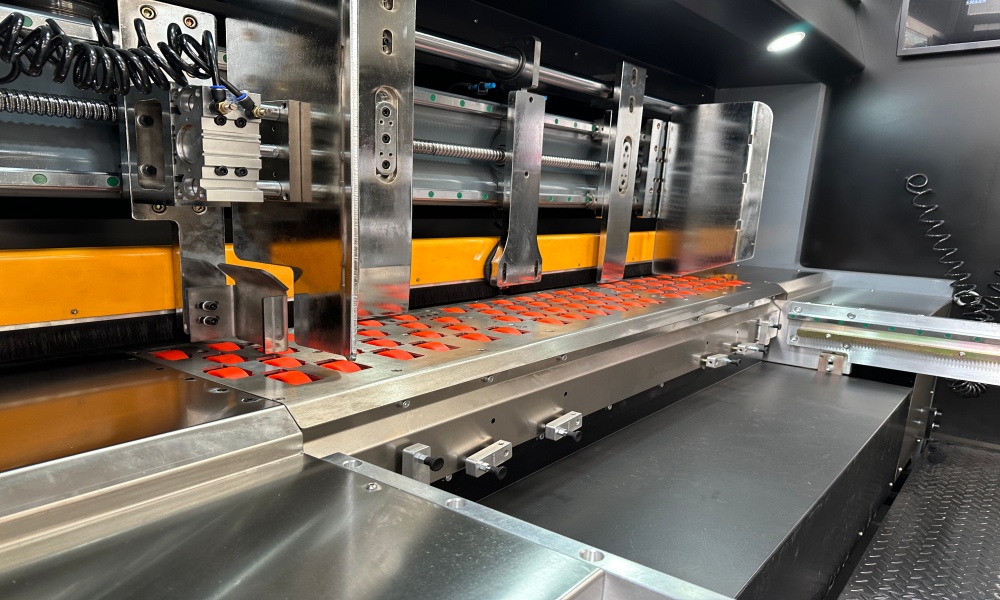

Feeder unit:

1、This printing slotting and die cutting machine is provided with a belt type lead edge feeder which features easy operation and maintenance

2、Thanks to the lead edge device, the paperboard can avoid being warped and feeding error is reduced.

3、Suction hold-down device is typically designed for aiding the feeding of warped board. The suction strength can be manually adjusted as per needs. Display on dial ensures convenience.

4、The left and right side gauge movement can be adjusted by computer. It comes with pneumatic aligning device.

5、Forward and backward back shield movement can also be adjusted by computer. Angle is manually adjusted.

6、Equipped with the company's unique parallel fit type suction dust removal mechanism,for large field and high network printing has a reliable guarantee, while effectively reducing the number of stoppage erase.

7、It is suitable for 3 ply, 5 ply and 7 ply corrugated cardboard, including corrugated board E.

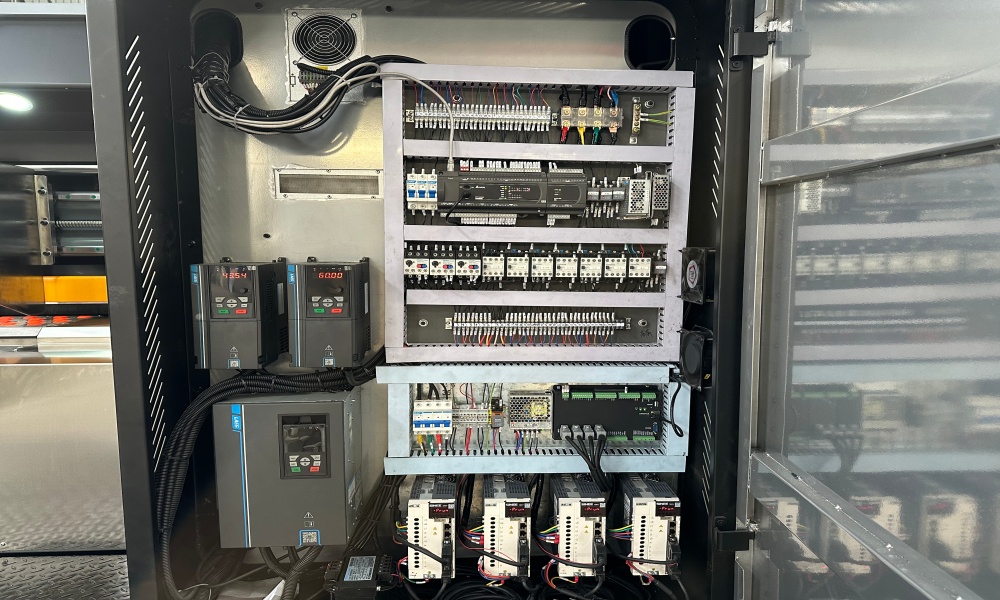

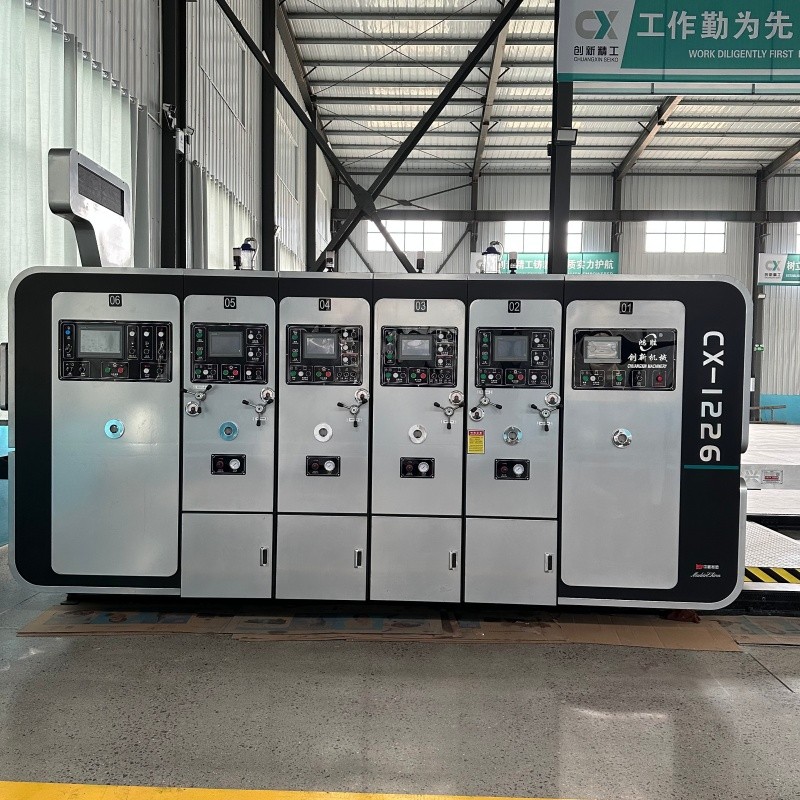

Electrical control cabinet ：

1、The use of international brand electrical appliances, the whole machine runs stable, the adjustment value is accurate.The flexo printer can implement 1 to 5 color printing or more color printing. It can print not only ordinary cartons but also high quality and high precision polychrome printing cartons such as fruit case, gift box, beer case, etc.

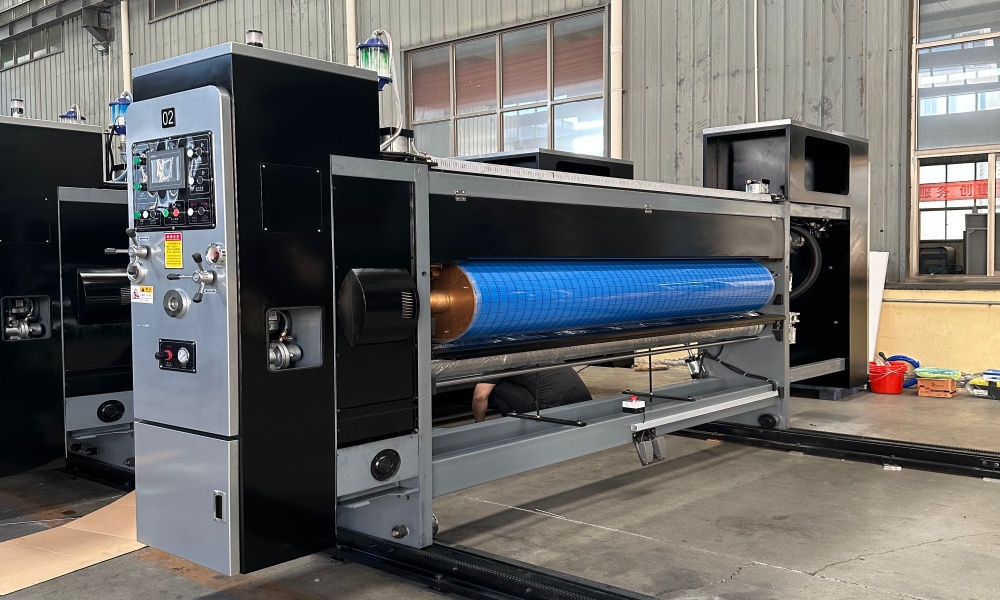

Features of Printer Unit：

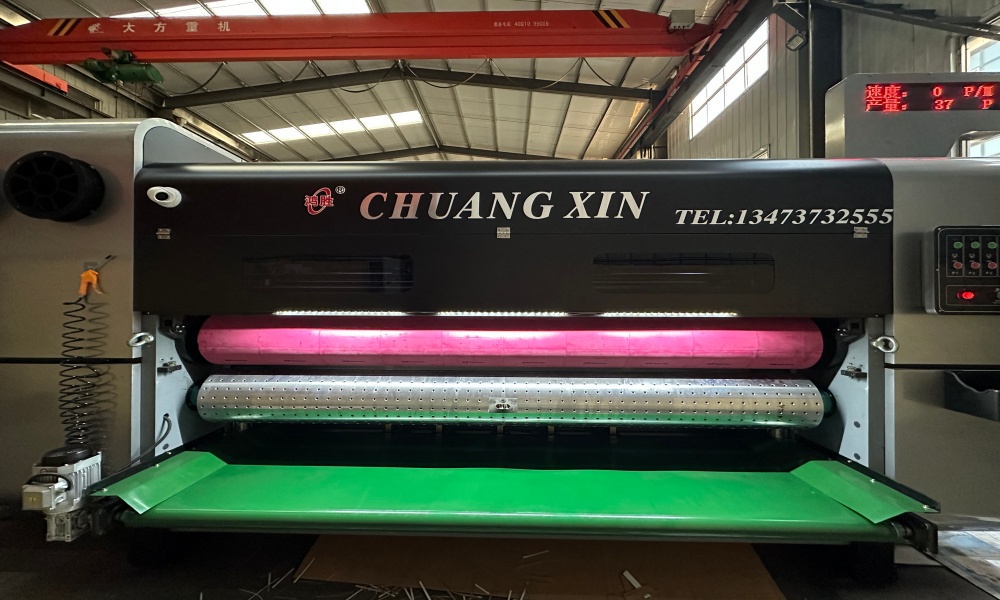

1、The printer unit of this series flexo printer slotter die cutter and stacker is equipped with steel Anilox roller.

2、 It is a standard machine supplied with rubber roller inking system. (Two scraping knife inking system is on option)

3、 Quick change device makes mounting and disassembly of flexo printing plates faster and more convenient.

4、 Phase adjustment is controlled by PLC and touch screen, which ensures all-round adjustment.

5、Planetary gear phasing adjustment mechanism comes with long service life.

6、 The printing unit is provided with an automatic braking device which will prevent the printing cylinder from rotating when it is separated or in phase adjustment. Since that, the original gear position is unchanged.

7、 Automatic reset system ensures auto return to zero after the print roll is cleaned.

8、 Axial adjustment is controlled by computer with digital display. The adjust distance is up to 20mm.

9、 Auto lifting device for the anilox roller makes sure that the anilox roller will rise and be separated with the printing plate when feeding stops.

10、All clearance adjustments can be completed by computer.

11、The slotter unit in this flexo printer slotter, die cutter and stacker is used for making standard corrugated cartons. It can complete slotting, creasing, slitting and corner cutting at one stroke. Slotting size and carton height is motorized or manual adjust.

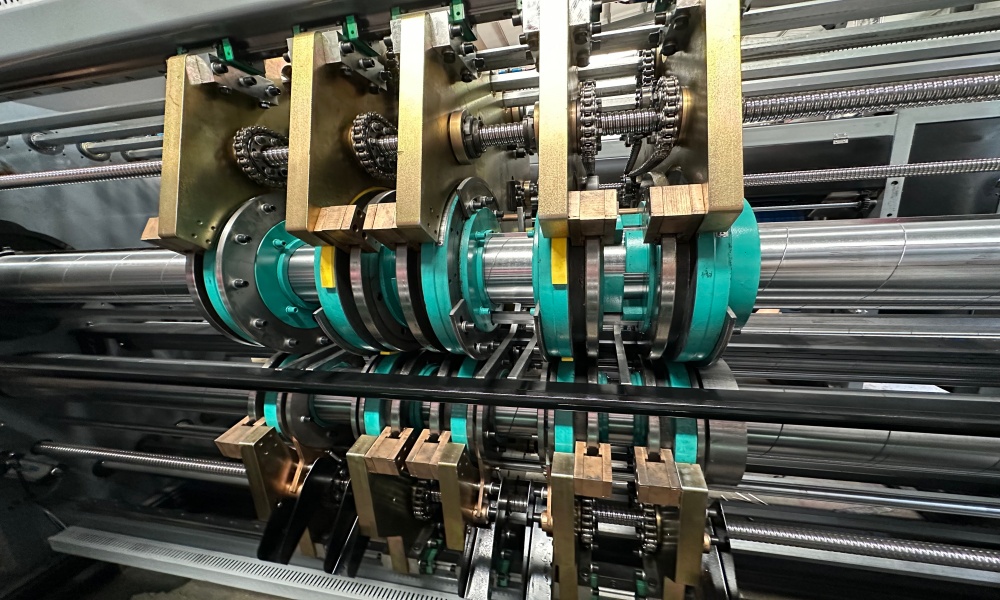

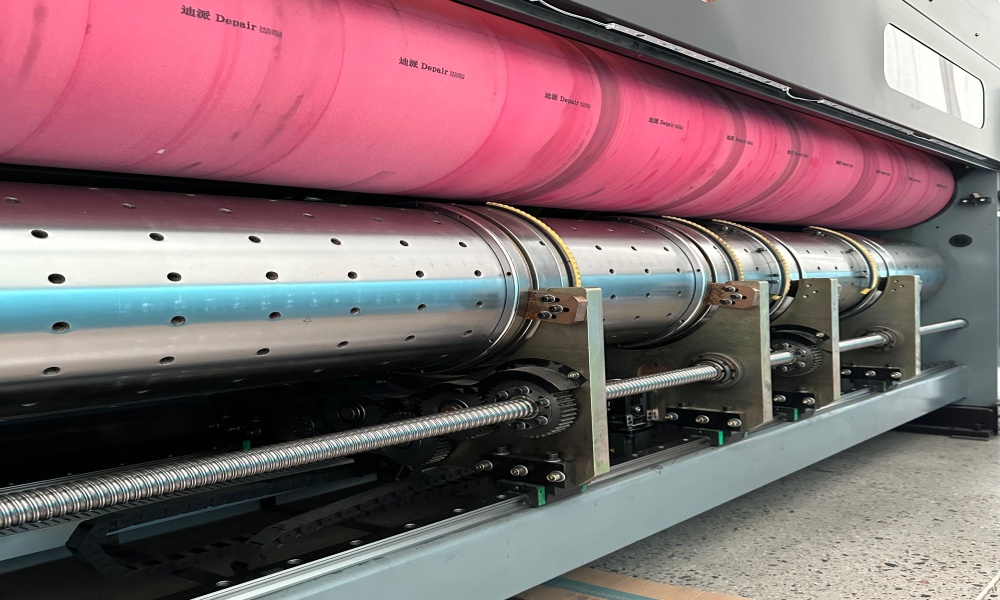

Slotter Unit：

1、The slotting unit comes with double scoring rollers. The paperboard that has been scored in advance is hard to damage.

2、Slotting phase adjustment and carton height adjustment can be done by PLC, with color screen display. It is double frequency adjustment.

3、The phase adjustment device is made of planetary gear, thus ensuring long life span.

4、The slotting head, with width of 7mm, is made from alloy materials by thermal treatment and comes with sharpness and high precision.

5、The clearance of slotting and scoring is controlled by high precision ball screw, PLC and touch screen.

6、The slotter boasts auto zero set function.

7、User-friendly operation interface with color touch screen ensures easy operation.

8、The die cutter unit in the flexo printer slotter, die cutter and stacker can be used for die cutting special corrugated boards. 2 to 3 or more boards can be cut at one stroke.

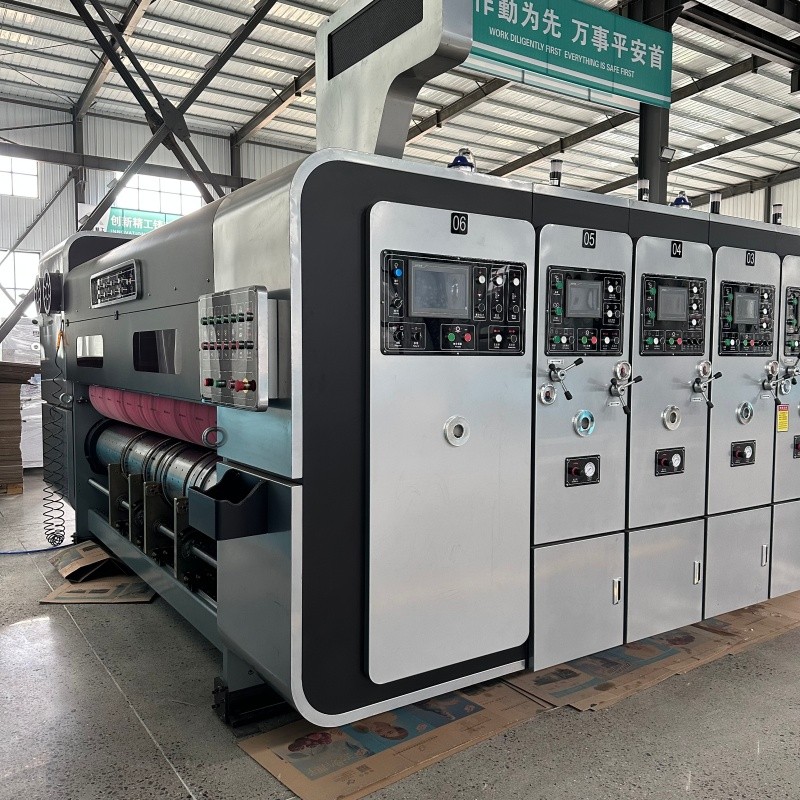

Die Cutter Unit：

1、 The folding carton die cutter comes with steel die cut roller with hard chrome plating treatment and grinding process on surface.

2、 The die cut roller features balance correcting function, hence ensuring stable running.

3、 The cushion roller is designed with an automatic moving device on axial direction, allowing it to move about 40mm.

4、 An automatic compensation device can prolong the service life of cushion roller.

5、The die cutting phase adjustment is controlled by PLC and color touch screen.

6、Planetary gear structure of phase adjustment device shows long service life.

7、 Axial position adjustment is controlled by computer with digital display.

1、In addition to the standard configuration of the main function of die cutting, in addition to the configuration of four sets of steel die, do ordinary industrial box slotting, cutting Angle, side use, servo motor four knife synchronous adjustment, electric transverse movement. One click change order, can store 999 orders, convenient and fast.

2、 using 8 sets of servo motor tool adjustment, high precision, fast tool adjustment speed.

3、adjust the box type there are 4 order modes: continuous box, single box (double molding), heaven and earth cover box, template shaped box.

4、tool adjustment at the same time, the leading edge left and right gear electric control synchronous adjustment.

5、the use of a pre-pressure, a solid pressure, are synchronous servo motor adjustment, easy to operate, forming effect is better.
