Hebei Dongguang County ChuangXin Carton Machinery Manufacturing Factory

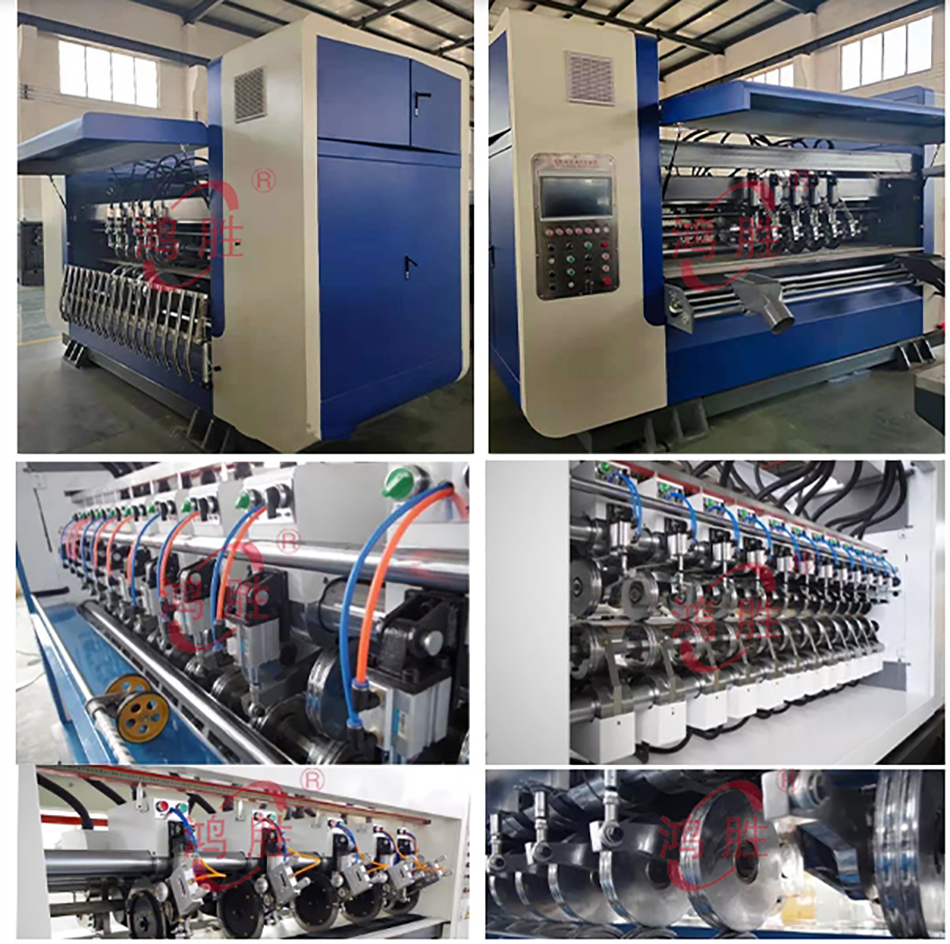

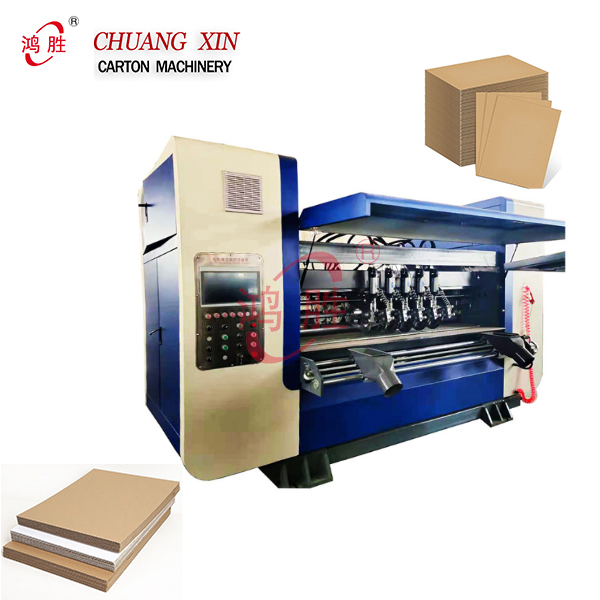

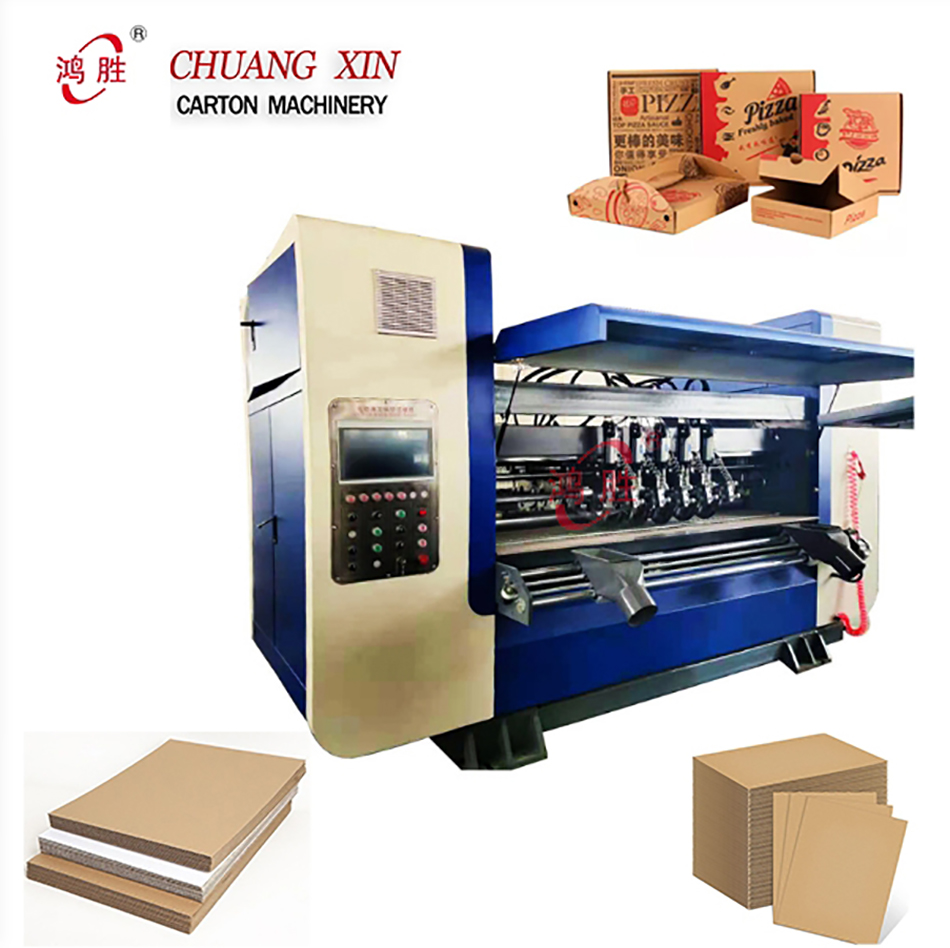

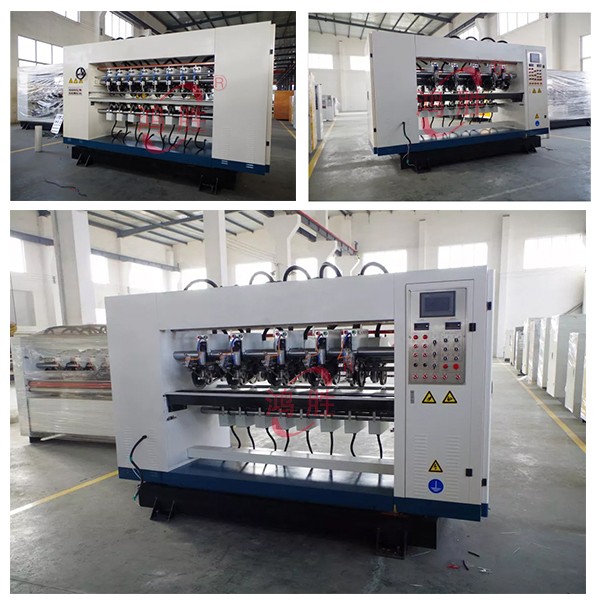

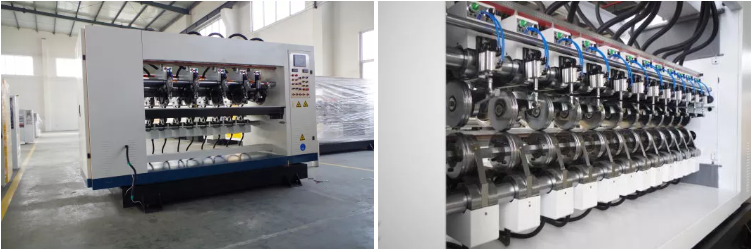

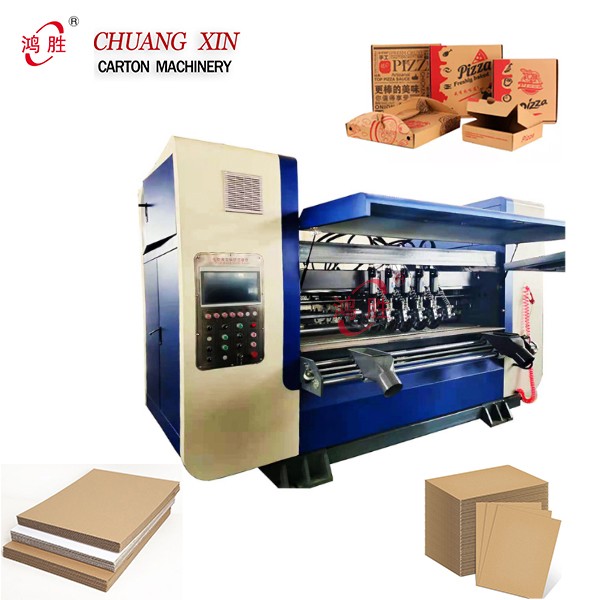

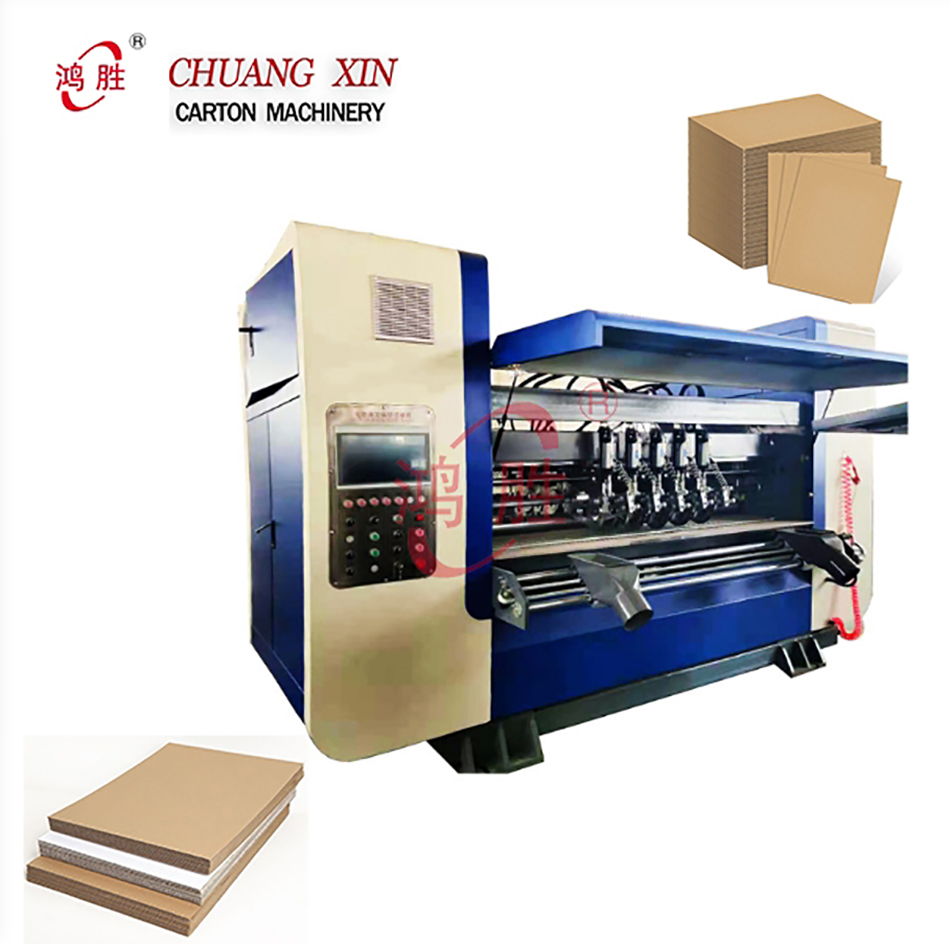

Automatic corrugated cardboard slitter scorer machine thin blade slitter scorer
Overview
Essential details
Type:Packaging Line
Applicable Industries:Food & Beverage Factory, Farms, Other
Showroom Location:Pakistan, Russia
Condition:New
Application:Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco
Packaging Type:Cartons
Packaging Material:Paper
Automatic Grade:Automatic
Driven Type:Electric
Voltage:380V/50HZ
Place of Origin:Hebei, China
Brand Name:YUYUAN
Dimension(L*W*H):2830*1260*2000(mm)
Weight:2500 KG
Warranty:2 years
Key Selling Points:Long Service Life
Marketing Type:New Product 2020
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:2 years
Core Components:Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Max slitting size:1850-2550mm
Min slitting size:130mm
Min scorer width:130mm
Scorer height:0-12mm
Blade size:
260*158
Blade/scorer:
4/6 ,5/8 ,6/10 ,7/12
Machine dimension:2830*1260*2000(mm)/3130*1260*2000(mm)/3330*1260*2000(mm)
Power:10KW

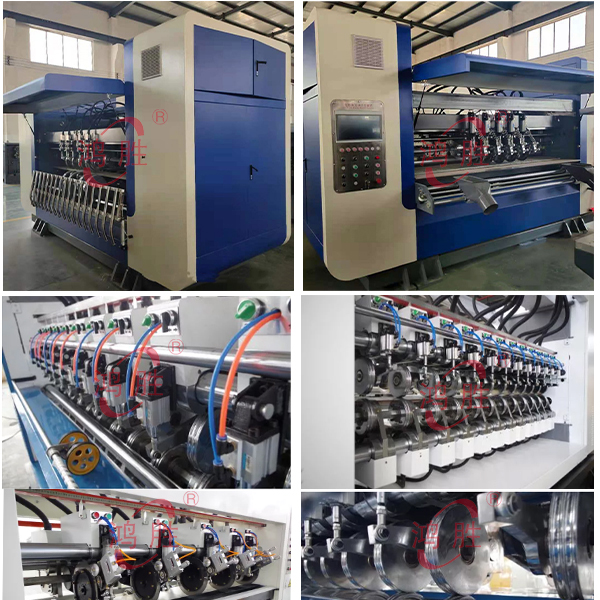

Product name:Thin blade slitter scorer machine
MACHINE CHOOSE：
|
TYPE |
Fully Electric |
WIDTH（mm） |
BLADE-SCORE |
Optional |
|
SMBD |
QDDSJ |
1800 2200 2500 |
4-6 5-8 6-10 7-12 |
Waste paper Suction |
TECHNICAL INDEX：
|
Model |
2000 |
2400 |
2700 |
|
Max slitting size（mm） |
1850 |
2250 |
2550 |
|
Min slitting size（mm） |
130 |
||
|
Min scorer width（mm） |
130 |
||
|
Scorer height（mm） |
0-12 |
||
|
Blade size（mm） |
260*158 |
||
|
Blade/scorer |
4/6 , 5/8 , 6/10 , 7/12 |
||
|
Machine dimension |
2830*1260*2000(mm) |
3130*1260*2000(mm) |
3330*1260*2000(mm) |
|
Power |
8.5kw |
10kw |
12kw |
Function and characteristic:
NC helix cutter (cut-off) machine use to cut corrugated cardboard in horizontal.
It is only work in corrugated cardboard line. cut batched cardboard to pieces.

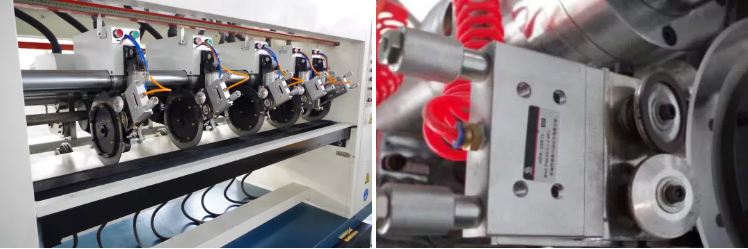

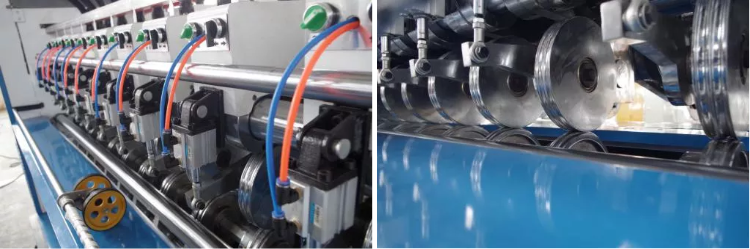

The space between slitting blades is electrically adjusted,automatic locking,improve work efficiency. Blade electric adjusted type adopt auto locking,double smooth shaft guide way,sturdy and durable. Using the synchronous belt transmission,low noise. Taiwan Delta colorful touch screen,simple operation. Adopt computer control automatic or manual grinding. The control system is composed of high performance and double frequency converter,energy saving,stable and reliable. Keep the synchronous speed with the production line automatically. Patent type passive grinding,compact structure,can work while sharpening,improve work efficiency.
The space between slitting blades is electrically adjusted,automatic locking,improved working efficiency.
Alloyed steel thin-blades,sharp and long life of over 800 million meters,auto sharpening.automatic grinding
Scorer pneumatic lifting,Overall adjustment indentation depth.Scorer adopt high quality steel,improve service life.
