Thin Blade Slitter Scorer Machine

Semi-Auto Corrugated Cardboard Slitter Scorer Machinery/Thin Blade Slitting Machine For Paperboard

Place of Origin: Hebei, China
Brand: chuangxin
Model: Payment and Shipping Terms:
MOQ: One set
Packaging Details: Tray
Delivery time: 50-60 days
Payment Terms: Wire Transfer Premium
  • Product Detail

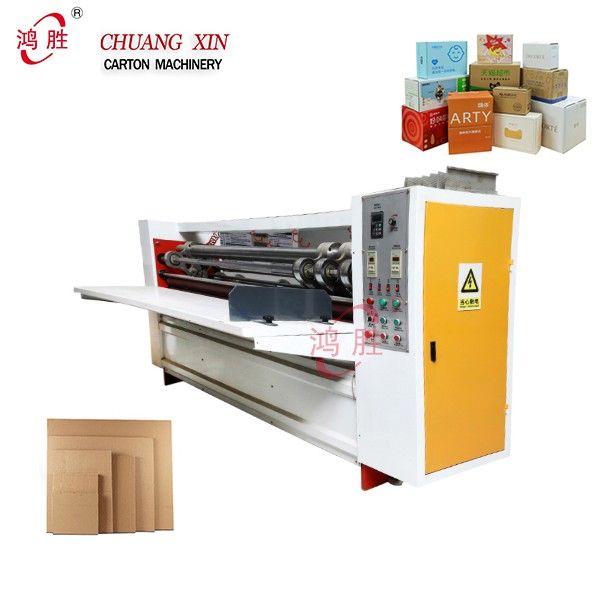

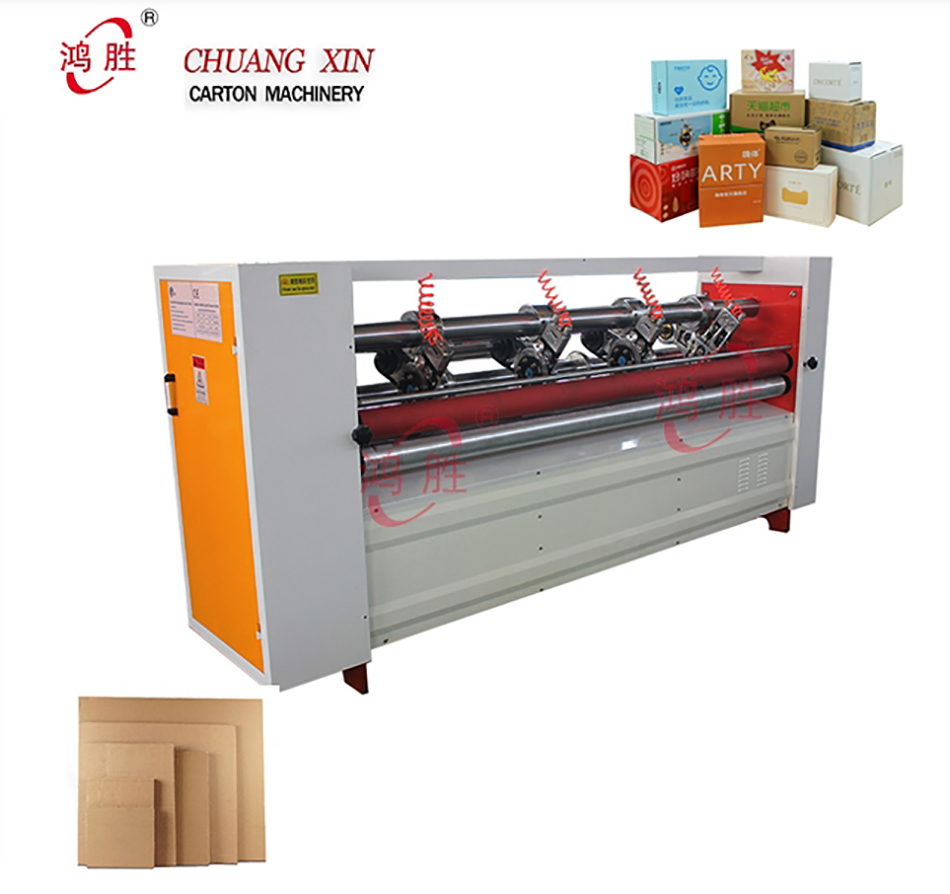

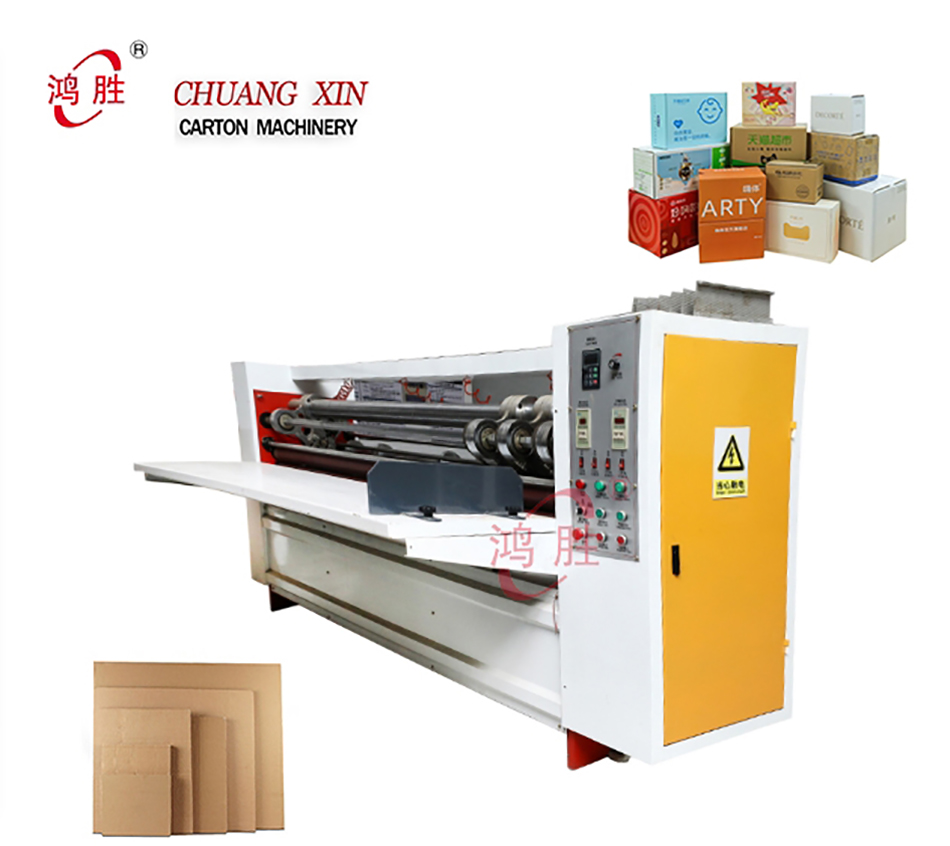

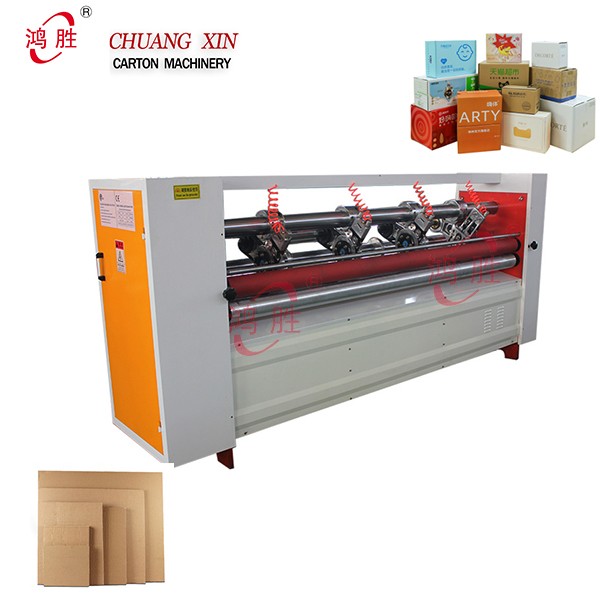

Semi-Auto Corrugated Cardboard Slitter Scorer Machinery/Thin Blade Slitting Machine For Paperboard

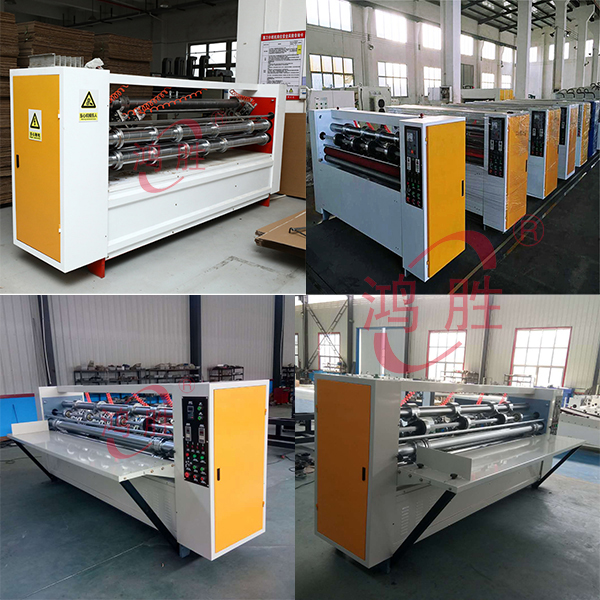

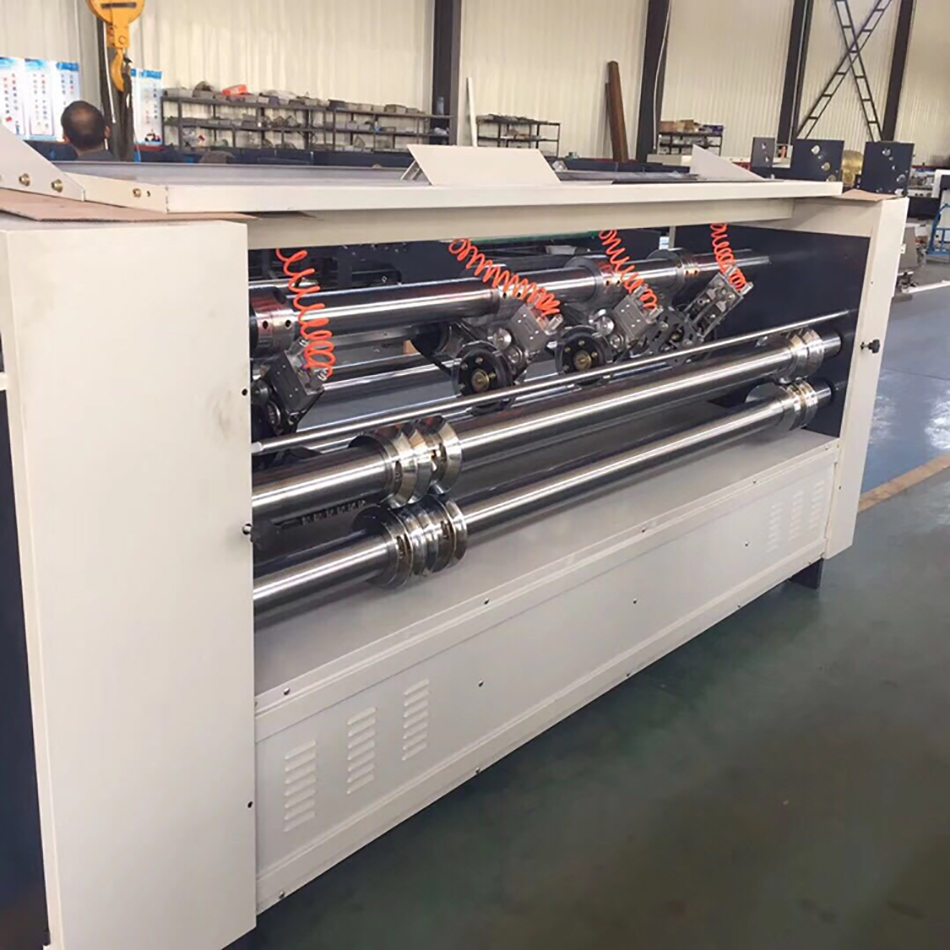

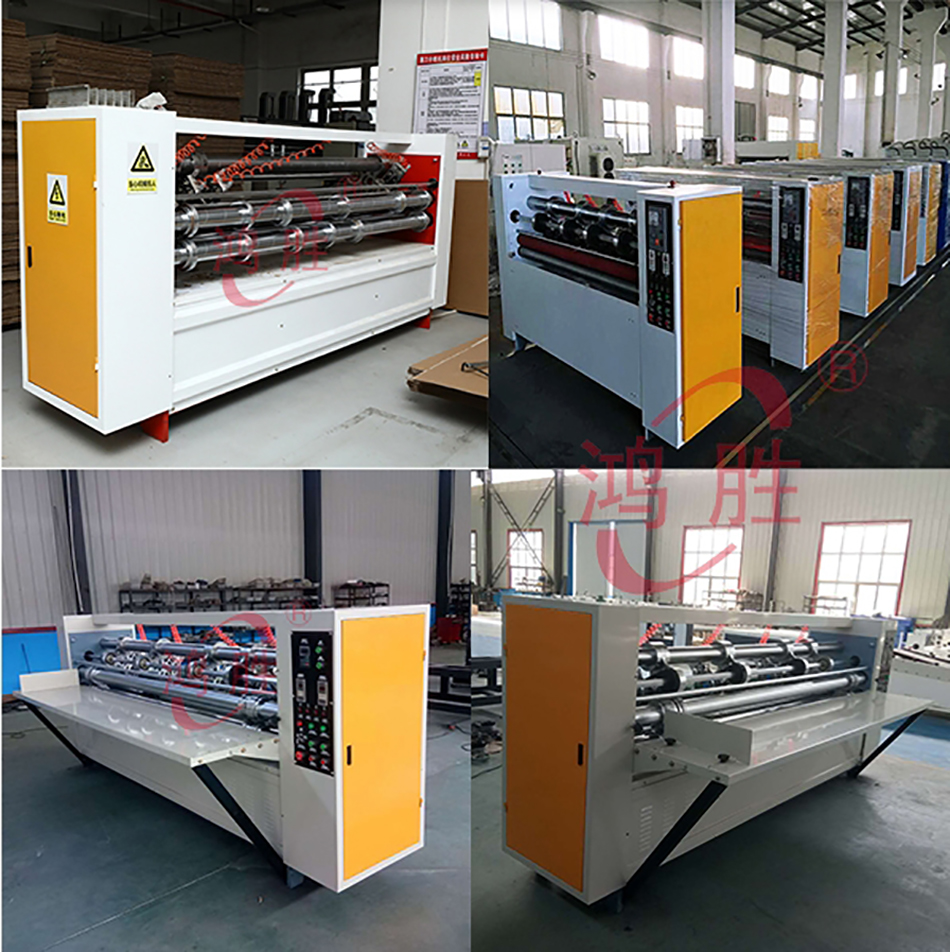

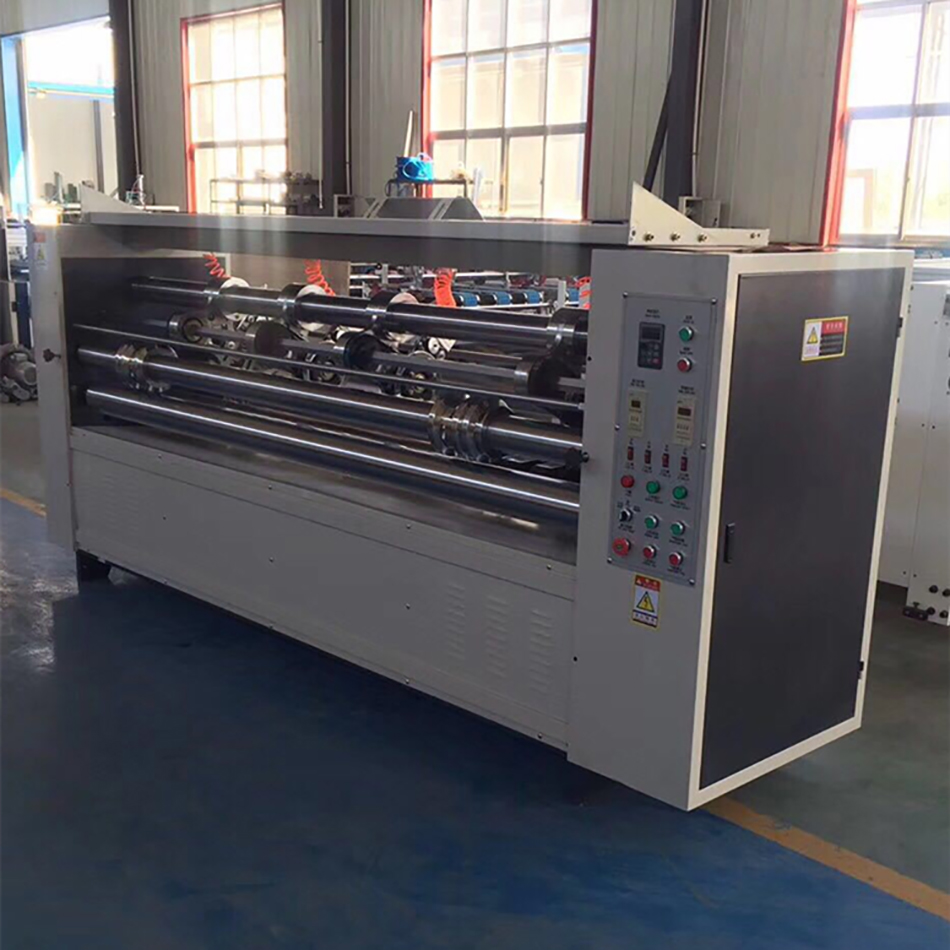

BFY thin blade slitter creaser machine is used to slit the rough edge and do the creasing line on the cardboard. Standard machine with 4 knives and 6 creasing, customer can choose 5 knives 8 creasing. Manually adjust the thin blade knives, automatic grinding the knives. Easy adjust and operate.


1. Design speed: 120m/min. working width: 2000mm to 3000mm

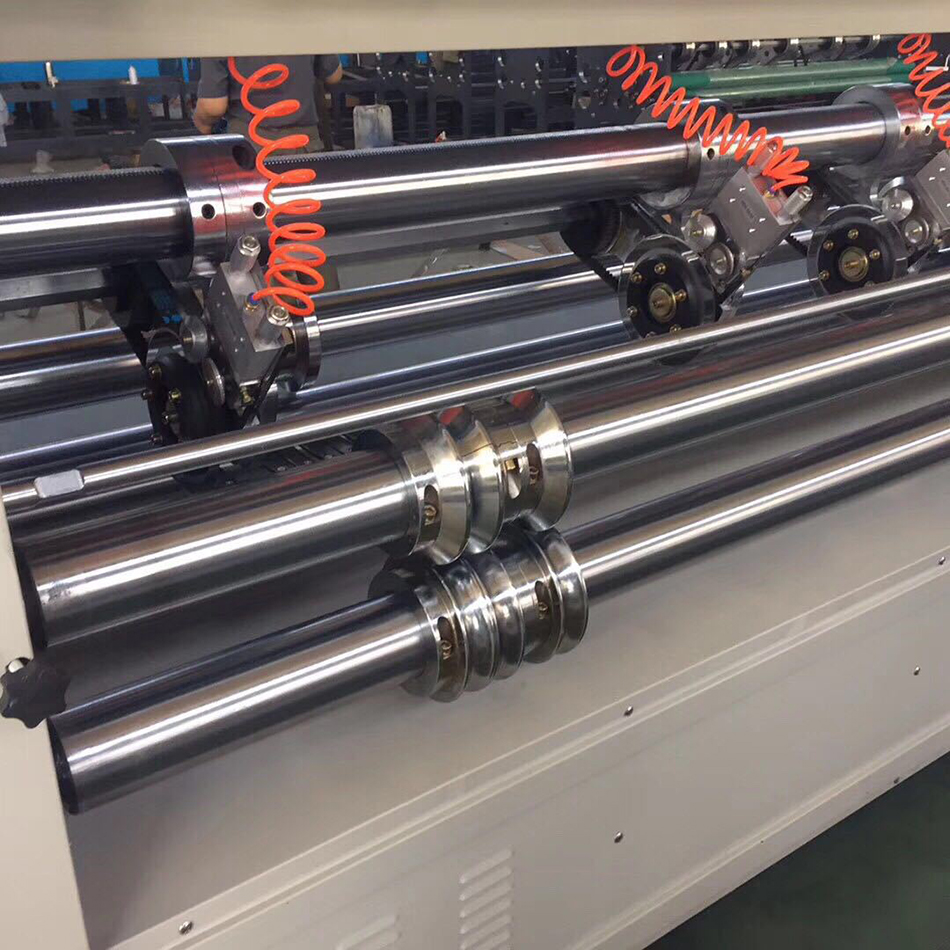

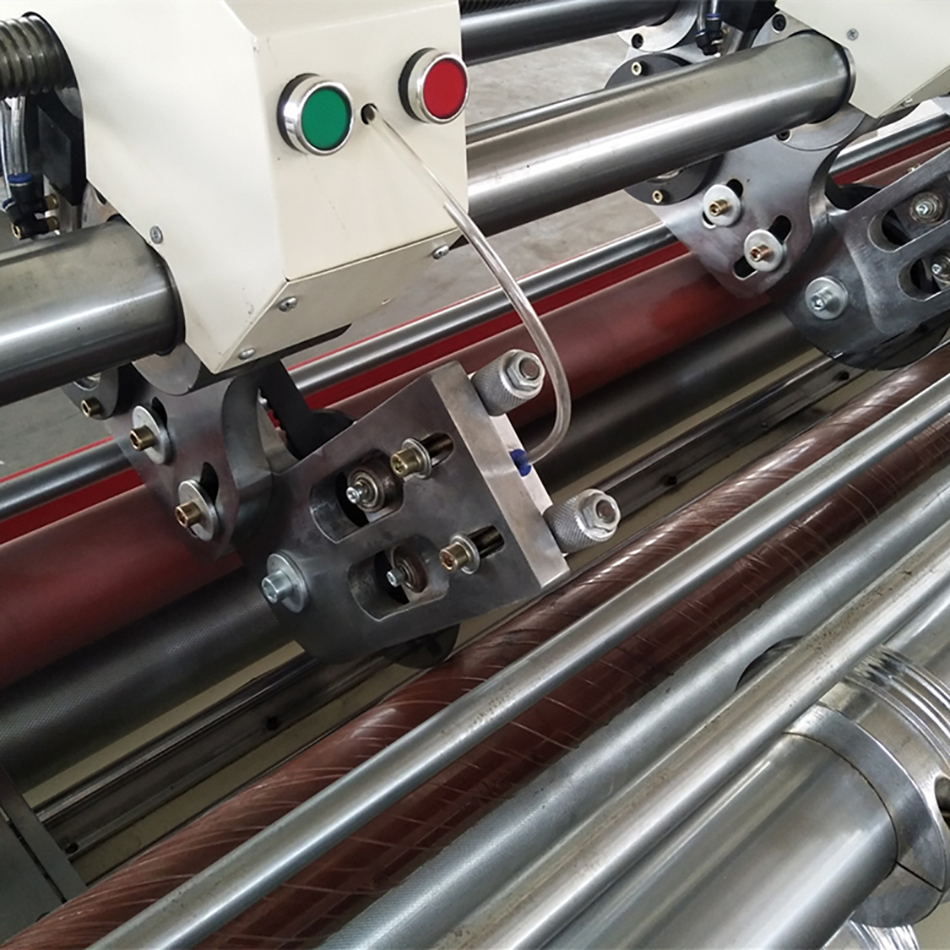

2. Slitting part: adopt high quality alloy steel blade, sharp and long working life,
3. Creasing part: adopt 5 points creasing, creasing distance adjustment synchronous. easy to bend the cardboard.
4.Grinding part: adopt automatic and manual pneumatic grinding type. It can grind while working, which can improve working efficiency.

Overview


Essential details

Type:  Packaging  Line

Applicable  Industries:     Manufacturing   Plant,   Printing  Shops,  Advertising  Com. … .

Showroom  Location:   None

Condition: New

Application: Chemical,   Commodity,   Machinery   &   Hardware,   Medical

Packaging    Type:          case,   Film

Packaging     Material:    Plastic,   Wood

Automatic    Grade:        Automatic

Driven   Type:                 Electric

Voltage:                           380V

Place      of      Origin:                 Hebei,   China

Brand    Name: CHUANG XIN

Dimension(L*W*H):         2380*750*1350mm


Warranty:                        1  Year

Key  Selling   Points:      Easy  to  Operate

Marketing    Type:           New   Product  2020

Machinery Test Provided Report:Video outgoing- Provided


inspection: Warranty  of  core          1  Year

components:

Core    Components:      Bearing,   Motor,   Pump,  Gear,   PLC,Pressure  vessel,   E .

After-sales    Service      Engineers  available  to  service  machinery  overseas,  O .

Provided:

color:                               as   customer   required

size:                                as   customer   required

Contactor(switch):           CHNT  or  Schneider

PLC:                                Delta  or  Siemens  or  other

Lubrication:                     manual     operation(auto)

Operation:                       color  touch  screen

Motor   control:               frequency     conversion

Precision:                        ±0.3mm

speed:                             120psc/min

Service:After Warranty Video technical support, Online support, Spare parts

Certification:                    CE

No.

Item

Parameters

1

Max paper slitting width

1400mm

2

Max mechanical speed

100 pcs/min

3

Slitting knives amount

Three pieces

4

Creasing wheel amount

Four pairs

5

Min paper slitting width

125mm

6

Min creasing width

50mm

7

Outer diameter of slitting knives

200mm

8

Paper slitting knives thickness

1.3mm(Alloy knifes)

9

Motor power

4.0kw

10

Pneumatic pressure

Less than 0.4Mpa

11

Machine weight

1100kg

12

Overall size

2440*1040*2600mm

TYPE

CXBD-DD-1800

CXBD-DD-2000

CXBD-DD-2200

CXBD-DD-2500

CXBD-DD-3000

Effective width

1700mm

1900mm

2100mm

2400mm

2900mm

Total power

3kw

4kw

5kw

5kw

5kw

Min. Slitter-spacing

120mm

120mm

120mm

120kw

120mm

Min. Score-spacing

30mm

30mm

30mm

30mm

30mm

Min. Paper length

260mm

260mm

260mm

260mm

260mm

Dimensions L x W x H (mm)

2380*750*1350

2580*750*1350

2780*750*1350

3080*750*1350

3580*750*1350
